3104-3 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PC PIN CIRC 0.040DIA GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange	Mounting Type	Board Thickness [custom]	Board Thickness [custom]	Insulation	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Above Flange [x]	Length - Above Flange	Terminal Style	Termination	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Finish	Contact Material	Length - Below Flange [x]	Length - Below Flange [x]
Mill-Max Manufacturing Corp. 3104-3-00-21-00-00-08-0	20 µin	0.51 µm	0.043 in	1.09 mm	0.04 in	1.02 mm	Through Hole	0.094 in	2.39 mm	Non-Insulated	1.77 mm	0.07 in	0.5 in	12.7 mm	Single End	Swage	PC Pin	16.08 mm	0.633 in	Gold	Brass Alloy	2.87 mm	0.113 "

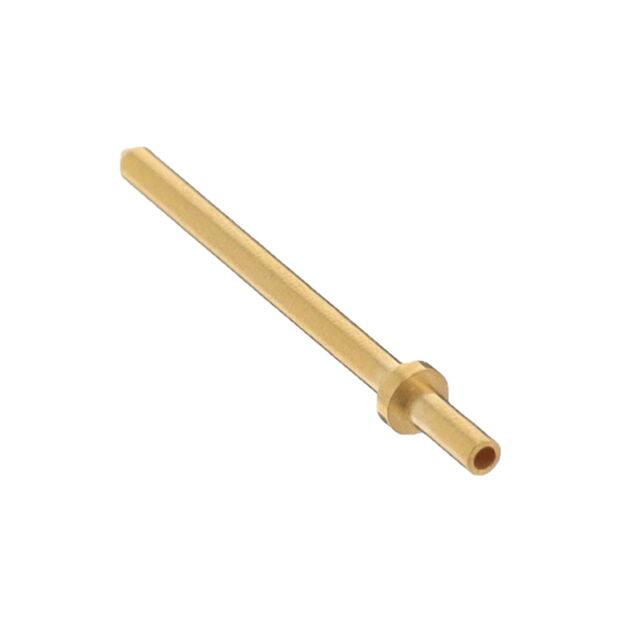

Mill-Max Manufacturing Corp. 3104-3-00-15-00-00-08-0	10 Áin	0.25 Ám	0.043 in	1.09 mm	0.04 in	1.02 mm	Through Hole	0.094 in	2.39 mm	Non-Insulated	1.77 mm	0.07 in	0.5 in	12.7 mm	Single End	Swage	PC Pin	16.08 mm	0.633 in	Gold	Brass Alloy	2.87 mm	0.113 "
Mill-Max Manufacturing Corp. 3104-3-00-34-00-00-08-0	50 µin	1.27 µm	0.043 in	1.09 mm	0.04 in	1.02 mm	Through Hole	0.094 in	2.39 mm	Non-Insulated	1.77 mm	0.07 in	0.5 in	12.7 mm	Single End	Swage	PC Pin	16.08 mm	0.633 in	Gold	Brass Alloy	2.87 mm	0.113 "
Mill-Max Manufacturing Corp. 3104-3-00-80-00-00-08-0	200 Áin	5.08 Ám	0.043 in	1.09 mm	0.04 in	1.02 mm	Through Hole	0.094 in	2.39 mm	Non-Insulated	1.78 mm	0.07 in	0.5 in	12.7 mm	Single End	Swage	PC Pin	16.08 mm	0.633 in	Tin	Brass	2.87 mm	0.113 "
Mill-Max Manufacturing Corp. 3104-3-00-01-00-00-08-0	200 Áin	5.08 Ám	0.043 in	1.09 mm	0.04 in	1.02 mm	Through Hole	0.094 in	2.39 mm	Non-Insulated	1.77 mm	0.07 in	0.5 in	12.7 mm	Single End	Swage	PC Pin	16.08 mm	0.633 in	Tin-Lead	Brass Alloy	2.87 mm	0.113 "
