TPS54356-EP Series

Enhanced Product 4.5-V To 20-V Input, 3-A Output Synchronous Pwm Switches W/ Integrated Fet

Catalog

Enhanced Product 4.5-V To 20-V Input, 3-A Output Synchronous Pwm Switches W/ Integrated Fet

Part	Current - Output	Main Purpose	Regulator Topology	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Board Type	Voltage - Output	Utilized IC / Part	Frequency - Switching	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Function	Number of Outputs	Mounting Type	Supplier Device Package	Topology	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Package / Case	Package / Case	Output Type

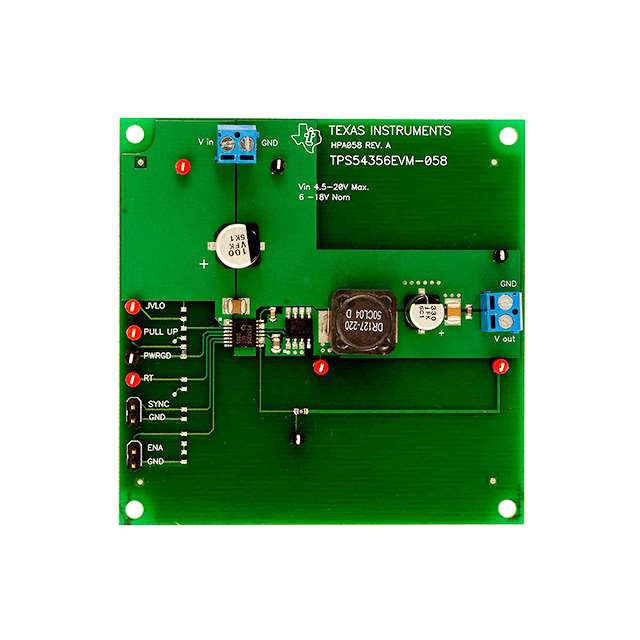

Texas Instruments TPS54356EVM-058	3 A	DC/DC Step Down	Buck	Board(s)	18 V	6 V	Non-Isolated	1	Fully Populated	3.3 V	TPS54356	500 kHz
Texas Instruments TPS54356PWPR	3 A												20 V	85 °C	-40 °C	Positive	Step-Down	1	Surface Mount	16-HTSSOP	Buck	3.3 V	4.5 V	16-PowerTSSOP	0.173 in 4.4 mm Width	1.81 mOhm
Texas Instruments TPS54356PWPRG4	3 A												20 V	85 °C	-40 °C	Positive	Step-Down	1	Surface Mount	16-HTSSOP	Buck	3.3 V	4.5 V	16-PowerTSSOP	0.173 in 4.4 mm Width	1.81 mOhm
Texas Instruments TPS54356MPWPREP	3 A												20 V	125 ¯C	-55 °C	Positive	Step-Down	1	Surface Mount	16-HTSSOP	Buck	3.3 V	4.5 V	16-PowerTSSOP	0.173 in 4.4 mm Width	1.81 mOhm
Texas Instruments TPS54356PWP	3 A												20 V	85 °C	-40 °C	Positive	Step-Down	1	Surface Mount	16-HTSSOP	Buck	3.3 V	4.5 V	16-PowerTSSOP	0.173 in 4.4 mm Width	1.81 mOhm

Catalog

Enhanced Product 4.5-V To 20-V Input, 3-A Output Synchronous Pwm Switches W/ Integrated Fet

Key Features

• 100-m, 4.5-A Peak MOSFET Switch for High Efficiency at 3-A Continuous Output CurrentUse External Low-Side MOSFET or DiodeFixed-Output Versions - 1.2 V/1.5 V/1.8 V/ 2.5 V/3.3 V/5 VInternally Compensated for Low Parts CountSynchronize to External Clock180° Out-of-Phase SynchronizationWide Pulse Width Modulation (PWM) Frequency - Fixed 250 kHz, 500 kHz, or Adjustable 250 kHz to 700 kHzInternal Slow StartLoad Protected by Peak Current Limit and Thermal ShutdownAdjustable Undervoltage Lockout16-Pin PowerPAD™ Thin Shrink Small-Outline Package (TSSOP) (PWP)APPLICATIONSIndustrial and Commercial Low-Power SystemsLCD Monitors and TVsComputer PeripheralsPoint-of-Load Regulation for High Performance DSPs, FPGAs, ASICs, and MicroprocessorsSUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Military (-55°C/125°C) Temperature RangeAdditional temperature ranges are available - contact factoryExtended Product Life CycleExtended Product-Change NotificationProduct TraceabilitySWIFT and PowerPAD are trademarks of Texas Instruments.100-m, 4.5-A Peak MOSFET Switch for High Efficiency at 3-A Continuous Output CurrentUse External Low-Side MOSFET or DiodeFixed-Output Versions - 1.2 V/1.5 V/1.8 V/ 2.5 V/3.3 V/5 VInternally Compensated for Low Parts CountSynchronize to External Clock180° Out-of-Phase SynchronizationWide Pulse Width Modulation (PWM) Frequency - Fixed 250 kHz, 500 kHz, or Adjustable 250 kHz to 700 kHzInternal Slow StartLoad Protected by Peak Current Limit and Thermal ShutdownAdjustable Undervoltage Lockout16-Pin PowerPAD™ Thin Shrink Small-Outline Package (TSSOP) (PWP)APPLICATIONSIndustrial and Commercial Low-Power SystemsLCD Monitors and TVsComputer PeripheralsPoint-of-Load Regulation for High Performance DSPs, FPGAs, ASICs, and MicroprocessorsSUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Military (-55°C/125°C) Temperature RangeAdditional temperature ranges are available - contact factoryExtended Product Life CycleExtended Product-Change NotificationProduct TraceabilitySWIFT and PowerPAD are trademarks of Texas Instruments.

Description

The TPS5435x is a medium-output-current synchronous buck PWM converter with an integrated high-side MOSFET and a gate driver for an optional low-side external MOSFET. Features include a high-performance voltage error amplifier that enables maximum performance under transient conditions. The TPS5435x has an undervoltage lockout (UVLO) circuit to prevent start-up until the input voltage reaches a preset value, an internal slow-start circuit to limit in-rush currents, and a power-good (PWRGD) output to indicate valid output conditions. The synchronization feature is configurable as either an input or an output for easy 180° out-of-phase synchronization. The TPS5435x devices are available in a thermally enhanced 16-pin PowerPAD Thin Shrink Small-Outline Package (TSSOP). TI provides evaluation modules and the SWIFT™ Designer software tool to aid in quickly achieving high-performance power-supply designs to meet aggressive equipment development cycles. The TPS5435x is a medium-output-current synchronous buck PWM converter with an integrated high-side MOSFET and a gate driver for an optional low-side external MOSFET. Features include a high-performance voltage error amplifier that enables maximum performance under transient conditions. The TPS5435x has an undervoltage lockout (UVLO) circuit to prevent start-up until the input voltage reaches a preset value, an internal slow-start circuit to limit in-rush currents, and a power-good (PWRGD) output to indicate valid output conditions. The synchronization feature is configurable as either an input or an output for easy 180° out-of-phase synchronization. The TPS5435x devices are available in a thermally enhanced 16-pin PowerPAD Thin Shrink Small-Outline Package (TSSOP). TI provides evaluation modules and the SWIFT™ Designer software tool to aid in quickly achieving high-performance power-supply designs to meet aggressive equipment development cycles.
