PJMF360 Series

Catalog

600V/ 360MOHM SUPER JUNCTION EAS

Part	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs [Max]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Type	Power Dissipation (Max)	Technology	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds
Panjit International Inc. PJMF360N60E1_T0_00001	Through Hole	10 V	TO-220-3 Full Pack Isolated Tab	150 °C	-55 °C	22 nC	ITO-220AB-F	360 mOhm	30 V	11 A	600 V	717 pF	N-Channel	32 W	MOSFET (Metal Oxide)	4 V

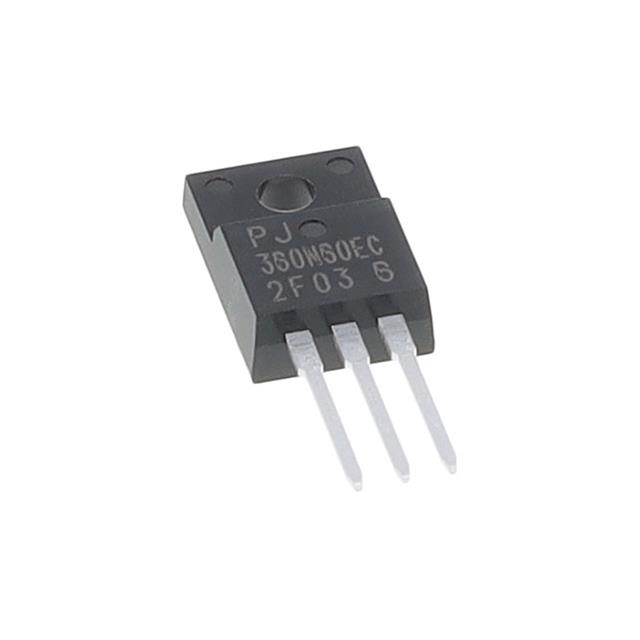

Panjit International Inc. PJMF360N60EC_T0_00001	Through Hole	10 V	TO-220-3 Full Pack Isolated Tab	150 °C	-55 °C	18.7 nC	ITO-220AB-F	360 mOhm	30 V	11 A	600 V		N-Channel		MOSFET (Metal Oxide)	4 V	735 pF
