581-M09 Series

Catalog

CONN MICRO-D FEMALE 9P RA PCB 15

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Color	Contact Material	Voltage Rating	Flange Feature	Contact Finish	Number of Rows [custom]	Shell Material, Finish	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Material Flammability Rating	Contact Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Backset Spacing	Backset Spacing	Features	Current Rating (Amps)	Termination	Connector Style	Number of Positions	Connector Type
NorComp Inc. 581-M09-213L461	125 °C	-40 C	Liquid Crystal Polymer (LCP)	Black	Brass	60 VDC	Board Side	Gold	2	Nickel Plated	Steel	Brass	UL94 V-0	Signal	Panel Mount Right Angle Through Hole	0.38 µm	15 µin	0.043 in	0.05 in	0.22 in	5.6 mm	Board Lock Shielded	2 A	Solder	D-Type Micro-D	9	Receptacle Female Sockets
NorComp Inc. 581-M09-113L461	125 °C	-40 C	Liquid Crystal Polymer (LCP)	Black	Brass	60 VDC	Board Side	Gold	2	Nickel Plated	Steel	Brass	UL94 V-0	Signal	Panel Mount Right Angle Through Hole	0.38 µm	15 µin	0.043 in	0.05 in	0.22 in	5.6 mm	Board Lock Shielded	2 A	Solder	D-Type Micro-D	9	Plug Male Pins
NorComp Inc. 581-M09-113L462	125 °C	-40 C	Liquid Crystal Polymer (LCP)	Black	Brass	60 VDC	Board Side	Gold	2	Nickel Plated	Steel	Brass	UL94 V-0	Signal	Panel Mount Right Angle Through Hole	0.76 Ám	30 Áin	0.043 in	0.05 in	0.22 in	5.6 mm	Board Lock Shielded	2 A	Solder	D-Type Micro-D	9	Plug Male Pins

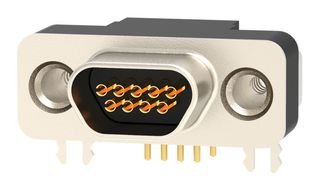

NorComp Inc. 581-M09-213L462	125 °C	-40 C	Liquid Crystal Polymer (LCP)	Black	Brass	60 VDC	Board Side	Gold	2	Nickel Plated	Steel	Brass	UL94 V-0	Signal	Panel Mount Right Angle Through Hole	0.76 Ám	30 Áin	0.043 in	0.05 in	0.22 in	5.6 mm	Board Lock Shielded	2 A	Solder	D-Type Micro-D	9	Receptacle Female Sockets
