MPC82 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC MPU MPC82XX 300MHZ 480TBGA

Part	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Core Processor	RAM Controllers	Number of Cores/Bus Width	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Speed	Voltage - I/O	Ethernet	Ethernet [Max]	Ethernet [Min]	Co-Processors/DSP	Additional Interfaces	Mounting Type	Type	Utilized IC / Part	Board Type	Contents
Freescale Semiconductor - NXP MPC8265AZUPIBC	37.5	37.5	480-TBGA	PowerPC G2	DRAM SDRAM	1 Core 32 Bit	105 °C	0 °C	480-LBGA Exposed Pad	300 MHz	3.3 V	(3)	100 Mbps	10 Mbps	Communications RISC CPM	I2C SCC SMC SPI UART USART	Surface Mount
Freescale Semiconductor - NXP MPC8265AVVPIBC	37.5	37.5	480-TBGA	PowerPC G2	DRAM SDRAM	1 Core 32 Bit	105 °C	0 °C	480-LBGA Exposed Pad	300 MHz	3.3 V	(3)	100 Mbps	10 Mbps	Communications RISC CPM	I2C SCC SMC SPI UART USART	Surface Mount
Freescale Semiconductor - NXP MPC8245TZU333D			352-TBGA (35x35)	PowerPC 603e		1 Core 32 Bit	105 °C	-40 °C	352-LBGA	333 MHz	3.3 V					I˛O I2C PCI UART	Surface Mount
Freescale Semiconductor - NXP MPC8250ACVRIHBC			516-PBGA (27x27)	PowerPC G2	DRAM SDRAM	1 Core 32 Bit	105 °C	-40 °C	516-BBGA	200 MHz	3.3 V	(3)	100 Mbps	10 Mbps	Communications RISC CPM	I2C SCC SMC SPI UART USART	Surface Mount
Freescale Semiconductor - NXP MPC8264AZUPIBB	37.5	37.5	480-TBGA	PowerPC G2	DRAM SDRAM	1 Core 32 Bit	105 °C	0 °C	480-LBGA Exposed Pad	300 MHz	3.3 V	(3)	100 Mbps	10 Mbps	Communications RISC CPM	I2C SCC SMC SPI UART USART	Surface Mount
Freescale Semiconductor - NXP MPC8245TZU300D			352-TBGA (35x35)	PowerPC 603e		1 Core 32 Bit	105 °C	-40 °C	352-LBGA	300 MHz	3.3 V					I˛O I2C PCI UART	Surface Mount
Freescale Semiconductor - NXP MPC8272ADS																	Fixed	MPU	MPC8272	Evaluation Platform	Board(s)

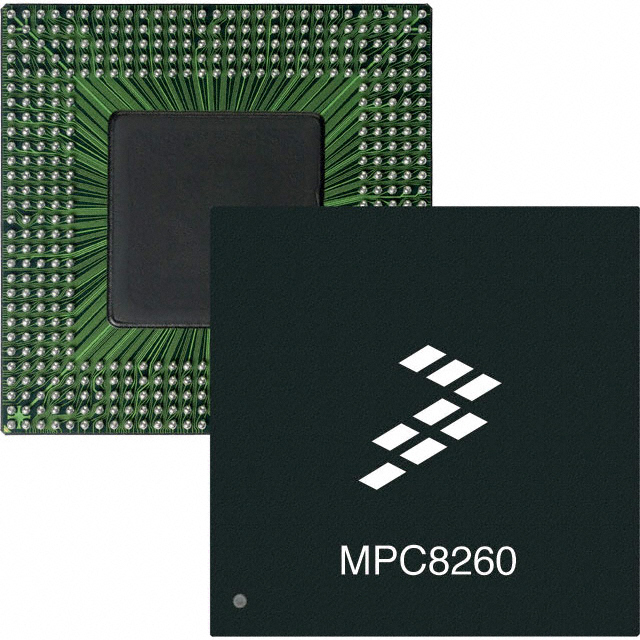

Freescale Semiconductor - NXP MPC8260AZUPIBB	37.5	37.5	480-TBGA	PowerPC G2	DRAM SDRAM	1 Core 32 Bit	105 °C	0 °C	480-LBGA Exposed Pad	300 MHz	3.3 V	(3)	100 Mbps	10 Mbps	Communications RISC CPM	I2C SCC SMC SPI UART USART	Surface Mount
Freescale Semiconductor - NXP MPC8250AVVPIBC	37.5	37.5	480-TBGA	PowerPC G2	DRAM SDRAM	1 Core 32 Bit	105 °C	0 °C	480-LBGA Exposed Pad	300 MHz	3.3 V	(3)	100 Mbps	10 Mbps	Communications RISC CPM	I2C SCC SMC SPI UART USART	Surface Mount
Freescale Semiconductor - NXP MPC8255AVVPIBB	37.5	37.5	480-TBGA	PowerPC G2	DRAM SDRAM	1 Core 32 Bit	105 °C	0 °C	480-LBGA Exposed Pad	300 MHz	3.3 V	(3)	100 Mbps	10 Mbps	Communications RISC CPM	I2C SCC SMC SPI UART USART	Surface Mount
