MAAOA Series

Catalog

MAAOA-WH ROHS COMPLIANT: YES

Part	Electrical Life	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Mounting Type	Actuator Type	Bushing Thread	Circuit	Termination Style	Actuator Length [x]	Illumination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC
Carling Technologies MAAOA-WH	25000 Steps	20 A	On-Off	85 °C	Panel Mount Snap-In	Paddle	Unthreaded	SPST	Quick Connect - 0.250" (6.3mm)	10.67 mm	Non-Illuminated	16.66 mm	30.94 mm	125 V

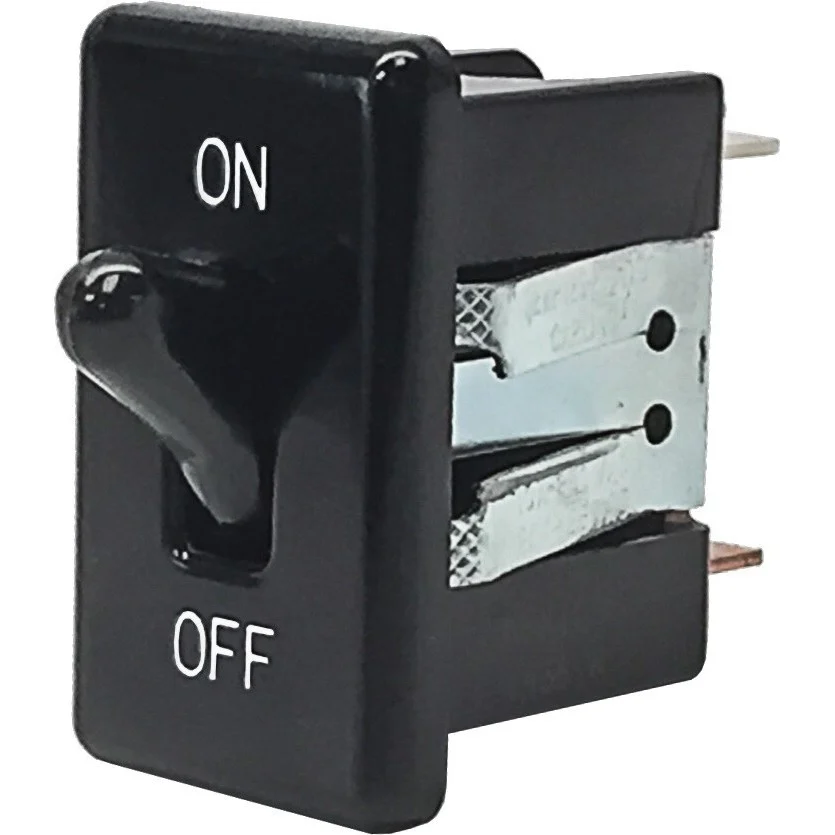

Carling Technologies MAAOA-BL	25000 Steps	20 A	On-Off	85 °C	Panel Mount Snap-In	Paddle	Unthreaded	SPST	Quick Connect - 0.250" (6.3mm)	10.67 mm	Non-Illuminated	16.66 mm	30.94 mm	125 V
Carling Technologies MAAOA-WH/ON-OFF	25000 Steps	20 A	On-Off	85 °C	Panel Mount Snap-In	Paddle	Unthreaded	SPST	Quick Connect - 0.250" (6.3mm)	10.67 mm	Non-Illuminated	16.66 mm	30.94 mm	125 V

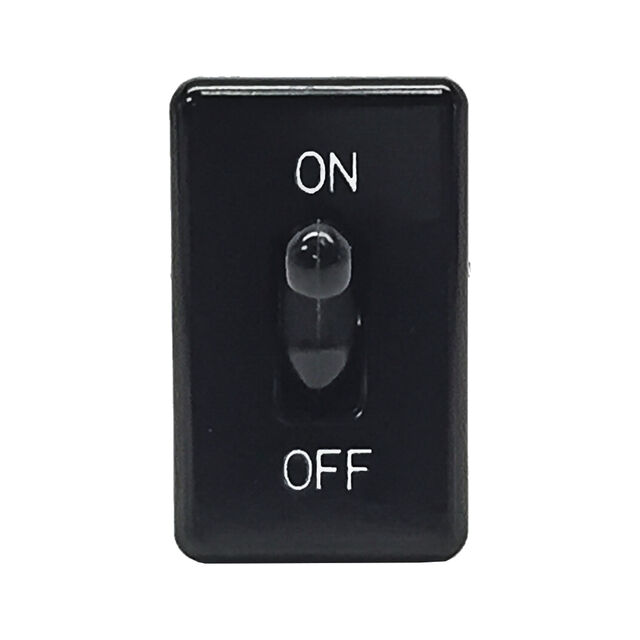

Carling Technologies MAAOA-BL/ON-OFF	25000 Steps	20 A	On-Off	85 °C	Panel Mount Snap-In	Paddle	Unthreaded	SPST	Quick Connect - 0.250" (6.3mm)	10.67 mm	Non-Illuminated	16.66 mm	30.94 mm	125 V
