0950-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

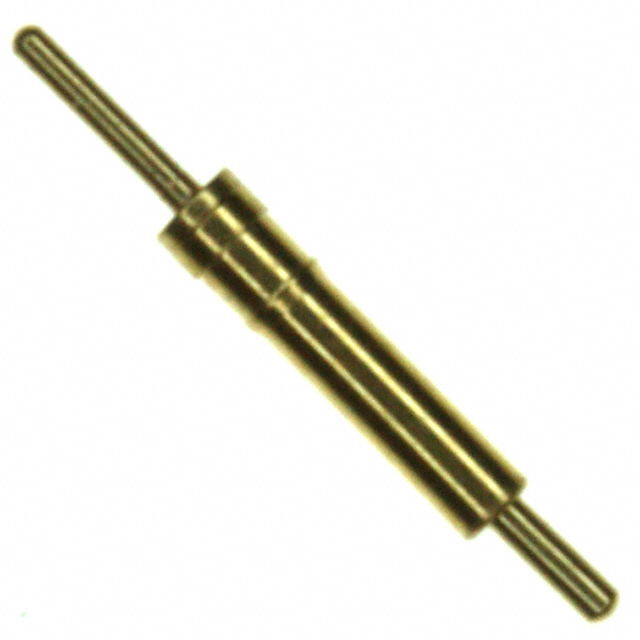

CONTACT SPRING LOADED T/H GOLD
| Part | Contact Type | Operating Force - Mid Compression | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Force - Initial | Minimum Working Height [z] | Minimum Working Height [z] | Plunger Size [diameter] | Plunger Size [diameter] | Mating Cycles | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Material | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Sleeve & Plunger (Pogo Pins) | 50 gf | 2 A | 20 µin | 0.51 µm | Gold | 15 gf | 0.193 in | 4.9 mm | 0.019 in | 0.48 mm | 1000000 | Through Hole | 6.3 mm | 0.248 in | Copper Alloy | 1.09 mm | 0.043 " | Circular | 5.61 mm | 0.221 in |
