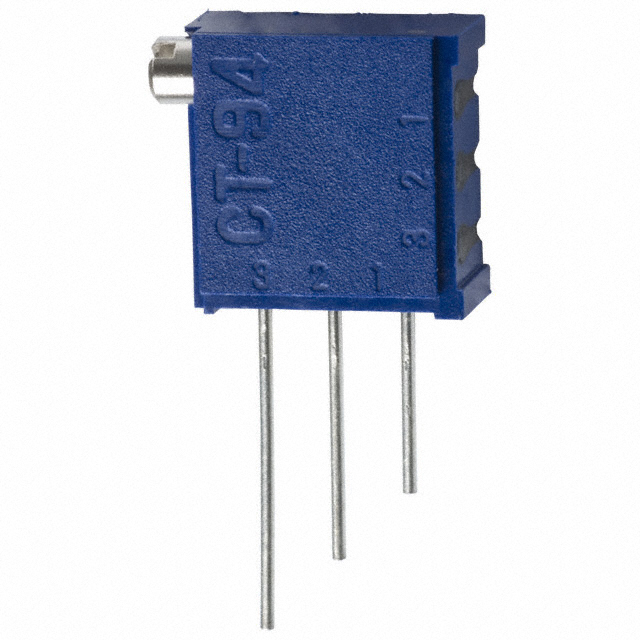

CT94EX Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
TRIMMER 20 OHM 0.5W PC PIN SIDE
| Part | Adjustment Type | Mounting Type | Number of Turns | Tolerance | Temperature Coefficient | Termination Style | Power (Watts) | Power (Watts) | Resistive Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 250 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 20 Ohms |
Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 2 kOhms |
 Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 5 kOhms |
Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 100 Ohms |
 Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 20 kOhms |
Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 100 kOhms |
Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 2 MOhms |
Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 50000 Ohms |
Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 0.5 kOhms |
Nidec Components Corporation | Side Adjustment | Through Hole | 18 | 10 % | 100 ppm/°C | PC Pins | 0.5 W | 0.5 W | Cermet | 9.6 mm | 0.189 " | 0.378 in | 4.8 mm | 1 MOhms |
