PFC0812 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 86.65CFM 54.4DB 80 X 80 X 38MM

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Features	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Approval Agency	RPM	Voltage - Rated	Termination	Fan Type	Static Pressure	Static Pressure	Power (Watts)	Width [y]	Noise	Bearing Type

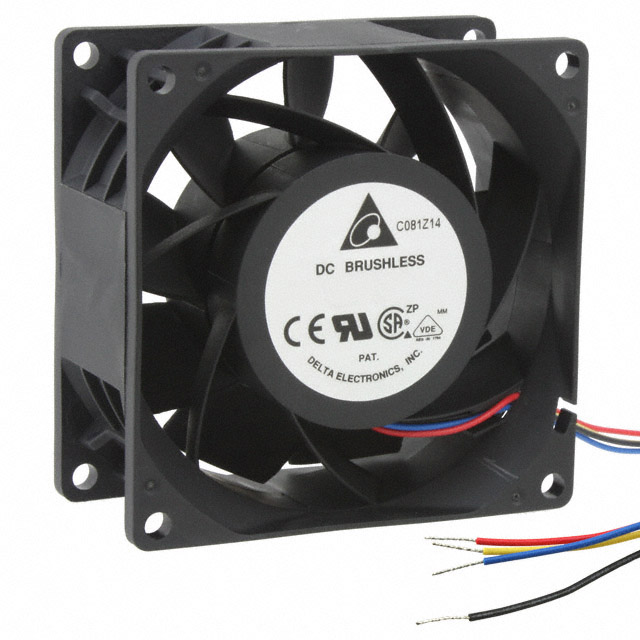

Delta Electronics PFC0812DE-SP07	40 °C 50000 Hrs	7 V	13.2 VDC	Plastic	Plastic	800 mA	-10 °C	60 °C	86.5 CFM	2.42 m³/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	80 mm	80 mm	205.02 g	0.452 lb	CE CSA UL VDE	6000 RPM	12 VDC	4 Wire Leads	Tubeaxial	222.9 Pa	0.895 in H2O	9.6 W	38 mm	54.4 dB(A)	Ball

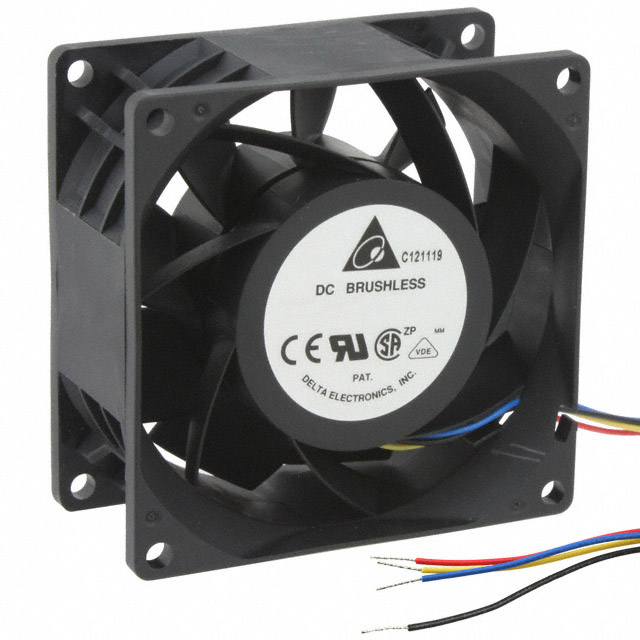

Delta Electronics PFC0812DE-SP04	40 °C 50000 Hrs	10.8 VDC	13.2 VDC	Plastic	Plastic	2.75 A	-10 °C	60 °C	132.6 CFM	3.71 mł/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	80 mm	80 mm	205.02 g	0.452 lb	CE CSA UL VDE	9000 RPM	12 VDC	4 Wire Leads	Tubeaxial	505.7 Pa	2.03 in H2O	33 W	38 mm	65 dB	Ball
