M2018SS Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Circuit	Actuator Length [x]	Current Rating (Amps)	Features	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Mounting Type	Actuator Type	Termination Style	Switch Function	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Bushing Thread

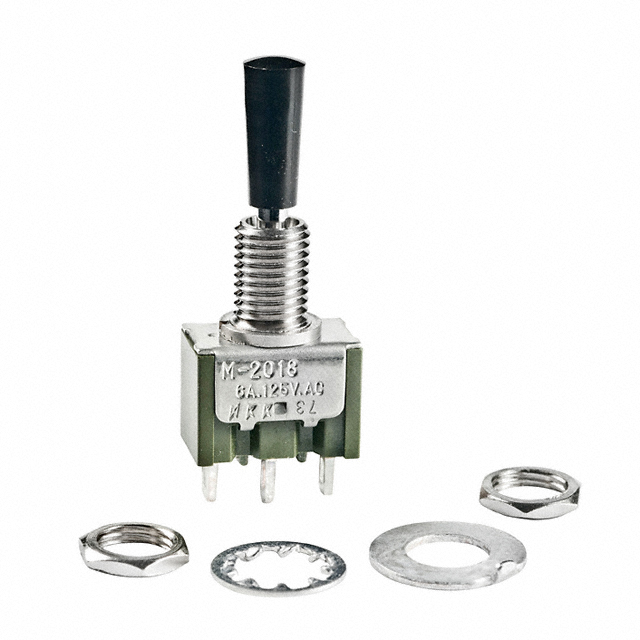

NKK Switches M2018SS4W01-CA	25000 Steps	Brass Chrome Plated	SPDT	13.1 mm	3 A 6 A	Black Cap	125 V	6.5 mm	30 V	Panel Mount	Standard Round with Cap	Solder Lug	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C	0.75	M6

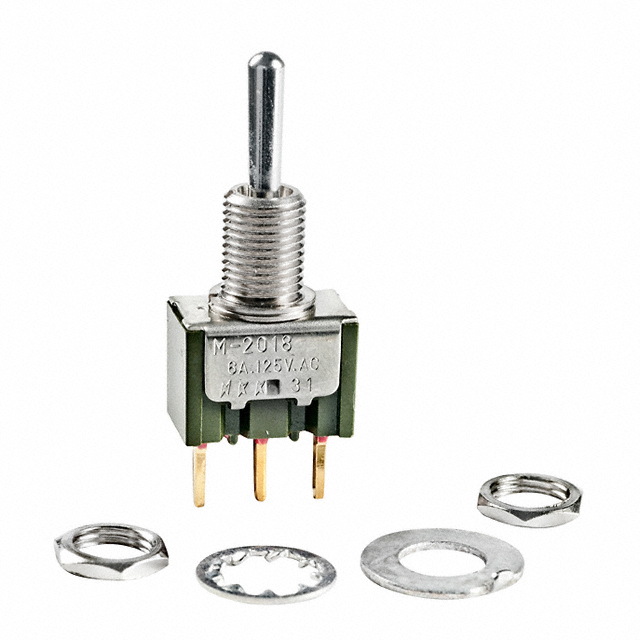

NKK Switches M2018SS1A03	25000 Steps	Brass Chrome Plated	SPDT		3 A 6 A	Epoxy Sealed Terminals	125 V	6.5 mm	30 V	Panel Mount	Standard Round	PC Pin	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C		1/4-40
NKK Switches M2018SS1W01-BB	25000 Steps	Brass Chrome Plated	SPDT	13.5 mm	3 A 6 A	White Cap	125 V	6.5 mm	30 V	Panel Mount	Standard Round with Cap	Solder Lug	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C		1/4-40

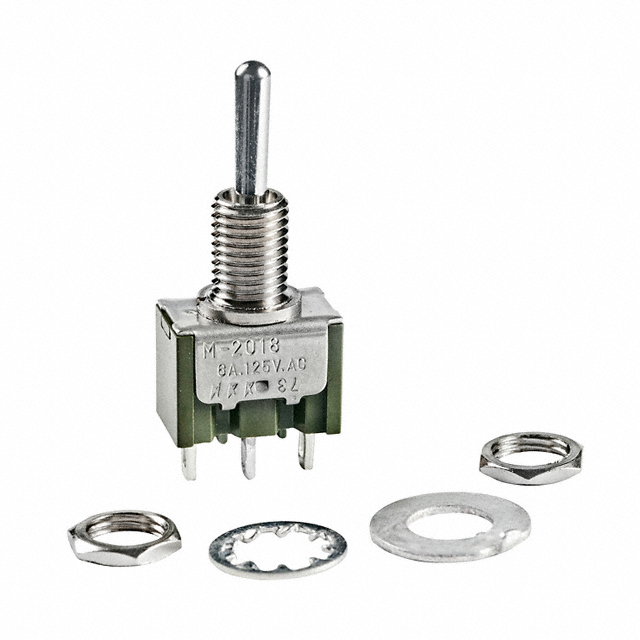

NKK Switches M2018SS4W01	25000 Steps	Brass Chrome Plated	SPDT		3 A 6 A	Epoxy Sealed Terminals	125 V	6.5 mm	30 V	Panel Mount	Standard Round	Solder Lug	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C	0.75	M6
NKK Switches M2018SS1G03	50000 Cycles	Brass Chrome Plated	SPDT		0.4 VA	Epoxy Sealed Terminals	28 V	6.5 mm	28 V	Panel Mount	Standard Round	PC Pin	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C		1/4-40

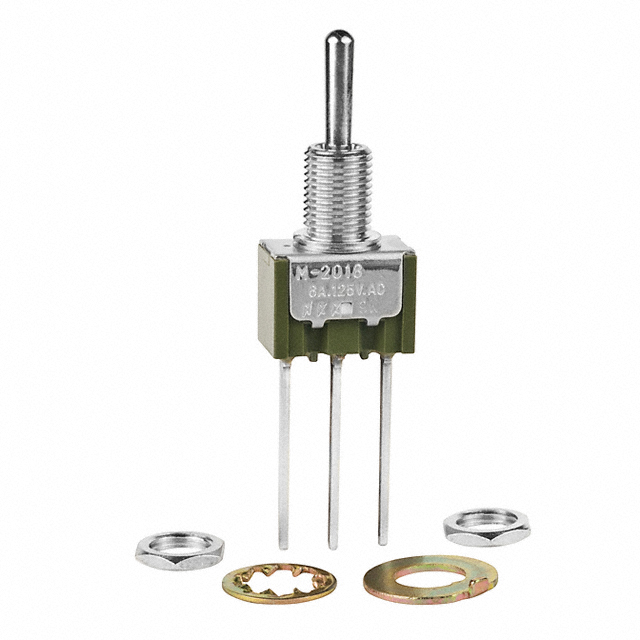

NKK Switches M2018SS1W06	25000 Steps	Brass Chrome Plated	SPDT		3 A 6 A	Epoxy Sealed Terminals	125 V	6.5 mm	30 V	Panel Mount	Standard Round	Wire Wrap	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C		1/4-40
NKK Switches M2018SS1W40	25000 Steps	Brass Chrome Plated	SPDT		3 A 6 A	Epoxy Sealed Terminals	125 V	6.5 mm	30 V	Panel Mount Right Angle Vertical	Standard Round	PC Pin	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C		1/4-40
NKK Switches M2018SS1W01-BA	25000 Steps	Brass Chrome Plated	SPDT	13.5 mm	3 A 6 A	Black Cap	125 V	6.5 mm	30 V	Panel Mount	Standard Round with Cap	Solder Lug	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C		1/4-40
NKK Switches M2018SS1W01-BC	25000 Steps	Brass Chrome Plated	SPDT	13.5 mm	3 A 6 A	Red Cap	125 V	6.5 mm	30 V	Panel Mount	Standard Round with Cap	Solder Lug	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C		1/4-40
NKK Switches M2018SS1G01-BG	50000 Cycles	Brass Chrome Plated	SPDT	13.5 mm	0.4 VA	Blue Cap	28 V	6.5 mm	28 V	Panel Mount	Standard Round with Cap	Solder Lug	Mom-Off-Mom	Non-Illuminated	85 °C	-30 ░C		1/4-40
