GLAA01 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 120V
| Part | Current Rating (Amps) | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Overtravel | Operating Force | Differential Travel | Operating Position | Switch Function | Circuit | Ingress Protection | Voltage Rating - DC | Features | Voltage Rating - AC | Termination Style | Pretravel | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

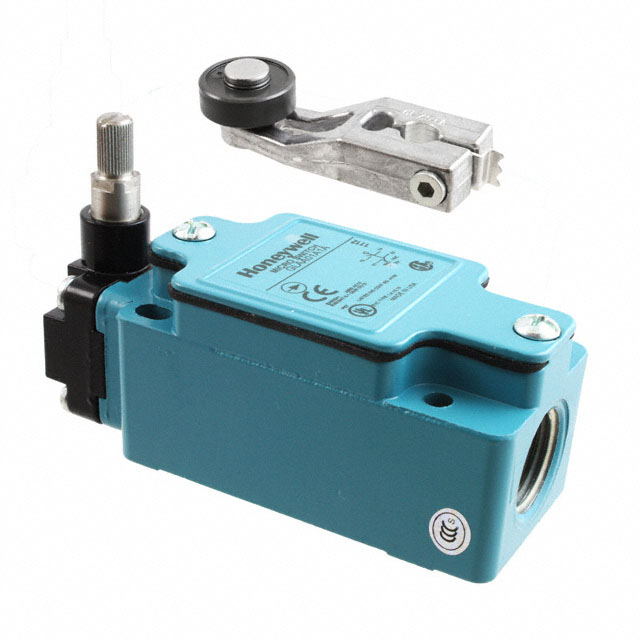

Honeywell Sensing and Productivity Solutions | 6 A 550 mA | Side Rotary Adjustable Roller | -25 °C | 85 °C | Chassis Mount | 59 ° | 33 gfm | 12 ° | 26 ° | On-Mom | SPDT | IP67 - Dust Tight Waterproof | 125 VDC | Nylon Roller | 120 V | Screw Terminal | 26 ° | 15000000 Cycles |

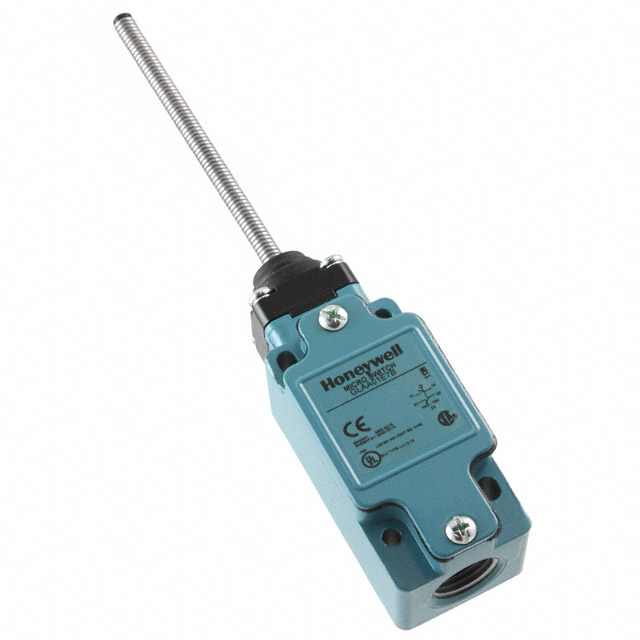

 Honeywell Sensing and Productivity Solutions | 6 A 550 mA | Coil Spring | -25 °C | 85 °C | Chassis Mount | 10 gfm | 18 ° | On-Mom | SPDT | IP66 | 125 VDC | 120 V | Screw Terminal | 18 ° | 15000000 Cycles | |||
 Honeywell Sensing and Productivity Solutions | 6 A 550 mA | Roller Side Rotary | -25 °C | 85 °C | Chassis Mount | 59 ° | 33 gfm | 12 ° | 26 ° | On-Mom | SPDT | IP67 - Dust Tight Waterproof | 125 VDC | Nylon Roller | 120 V | Screw Terminal | 26 ° | 15000000 Cycles |

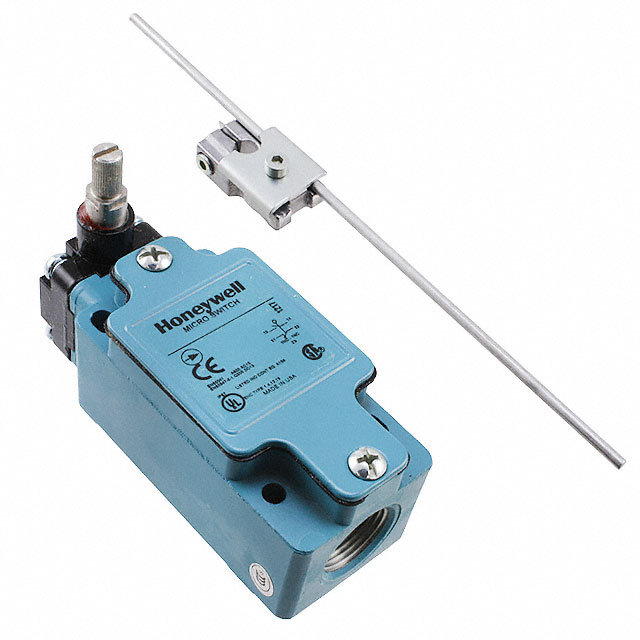

 Honeywell Sensing and Productivity Solutions | 6 A 550 mA | Side Rotary Adjustable Rod | -25 °C | 85 °C | Chassis Mount | 59 ° | 33 gfm | 12 ° | 26 ° | On-Mom | SPDT | IP67 - Dust Tight Waterproof | 125 VDC | 120 V | Screw Terminal | 26 ° | 15000000 Cycles |
