85618CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

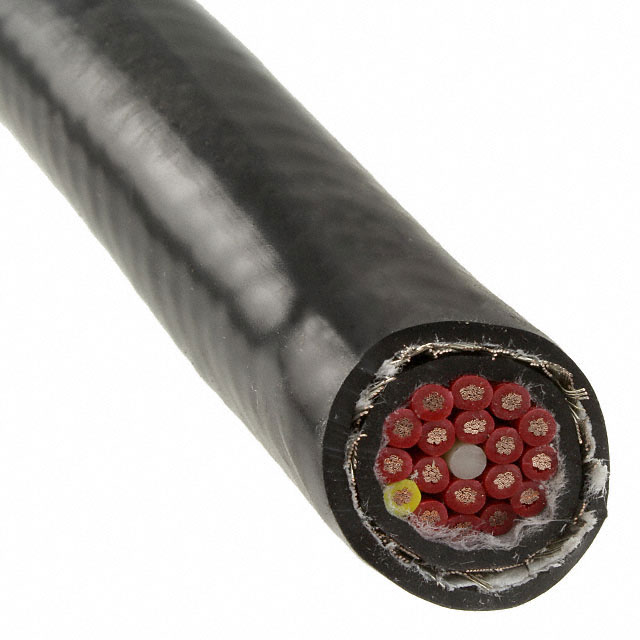

CABLE 18COND 16AWG BLACK SHLD
| Part | Jacket Color | Ratings | Shield Type | Cable Type | Jacket (Insulation) Material | Voltage | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Material | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Black | UL Style 2587 | Braid | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 600 V | 500 ' | 152.4 m | 0.805 " | 20.45 mm | 85 % | 0.06 in | 1.524 mm | Copper Tinned | 18 | 16 AWG | 105 | 38 AWG | Copper Bare | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Black | UL Style 2587 | Braid | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 600 V | 0.805 " | 20.45 mm | 85 % | 0.06 in | 1.524 mm | Copper Tinned | 18 | 16 AWG | 105 | 38 AWG | Copper Bare | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m |
