LM76002-Q1 Series

3.5V to 60V, 2.5A Synchronous Step-Down Voltage Converter

Catalog

3.5V to 60V, 2.5A Synchronous Step-Down Voltage Converter

Part	Frequency - Switching [Min]	Frequency - Switching [Max]	Supplier Device Package	Function	Mounting Type	Voltage - Input (Max) [Max]	Output Configuration	Voltage - Output (Max)	Package / Case	Output Type	Topology	Current - Output	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output (Min/Fixed)	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Qualification	Regulator Topology	Main Purpose	Voltage - Output	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching	Utilized IC / Part	Outputs and Type	Outputs and Type	Supplied Contents
Texas Instruments LM76002RNPT	300 kHz	2.2 MHz	30-WQFN (6x4)	Step-Down	Surface Mount Wettable Flank	60 V	Positive	57 V	30-WFQFN Exposed Pad	Adjustable	Buck	2.5 A	3.5 V	1	1 V	-40 °C	125 ¯C
Texas Instruments LM76002QRNPRQ1	300 kHz	2.2 MHz	30-WQFN (6x4)	Step-Down	Surface Mount Wettable Flank	60 V	Positive	57 V	30-WFQFN Exposed Pad	Adjustable	Buck	2.5 A	3.5 V	1	1 V	-40 °C	125 ¯C	Automotive	AEC-Q100

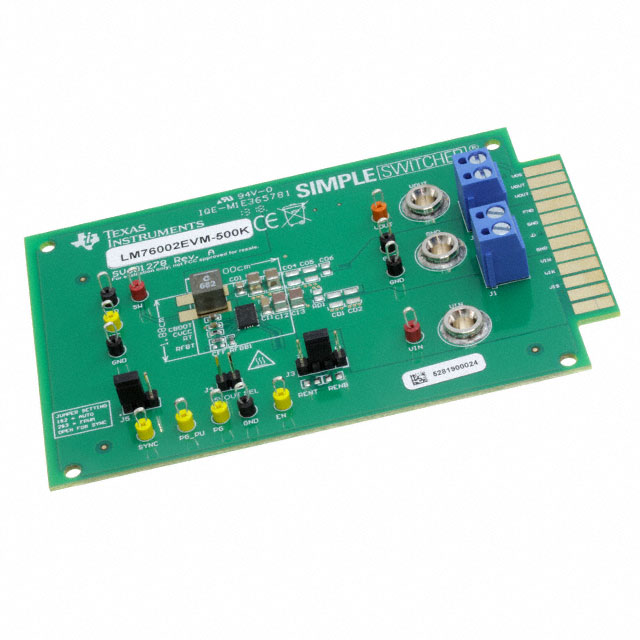

Texas Instruments LM76002EVM-500K												2.5 A								Buck	DC/DC Step Down	3.3 V	Fully Populated	60 V	3.5 V	500 kHz	LM76002	Non-Isolated	1	Board(s)
Texas Instruments LM76002RNPR	300 kHz	2.2 MHz	30-WQFN (6x4)	Step-Down	Surface Mount Wettable Flank	60 V	Positive	57 V	30-WFQFN Exposed Pad	Adjustable	Buck	2.5 A	3.5 V	1	1 V	-40 °C	125 ¯C

Catalog

3.5V to 60V, 2.5A Synchronous Step-Down Voltage Converter

Key Features

• AEC-Q100 qualified for automotive applicationsDevice temperature grade 1: –40°C to +125°C ambient operating temperatureDevice HBM ESD classification level 2Device CDM ESD classification level C5Integrated synchronous rectificationInput voltage 3.5 V to 60 V (65 V maximum)Output voltage 1 V to 95% VIN15-µA Quiescent current in regulationWide voltage conversion rangetON-MIN= 65 ns (typical)tOFF-MIN= 95 ns (typical)System-level featuresSynchronization to external clockPower-good flagAdjustable soft-start (6.3 ms default)Pin-selectable FPWM operationAdjustable frequency range: 300 kHz to 2.2 MHzHigh-efficiency at light-load architecture (PFM)Protection featuresCycle-by-cycle current limitShort-circuit protection with hiccup modeOvertemperature thermal shutdown protectionCreate a custom design using the LM76002-Q1η/LM76003-Q1 with theWEBENCH®Power DesignerAEC-Q100 qualified for automotive applicationsDevice temperature grade 1: –40°C to +125°C ambient operating temperatureDevice HBM ESD classification level 2Device CDM ESD classification level C5Integrated synchronous rectificationInput voltage 3.5 V to 60 V (65 V maximum)Output voltage 1 V to 95% VIN15-µA Quiescent current in regulationWide voltage conversion rangetON-MIN= 65 ns (typical)tOFF-MIN= 95 ns (typical)System-level featuresSynchronization to external clockPower-good flagAdjustable soft-start (6.3 ms default)Pin-selectable FPWM operationAdjustable frequency range: 300 kHz to 2.2 MHzHigh-efficiency at light-load architecture (PFM)Protection featuresCycle-by-cycle current limitShort-circuit protection with hiccup modeOvertemperature thermal shutdown protectionCreate a custom design using the LM76002-Q1η/LM76003-Q1 with theWEBENCH®Power Designer

Description

The LM76002-Q1/LM76003-Q1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2.5 A (LM76002-Q1) or 3.5 A (LM76003-Q1) of load current from an input up to 60 V. The LM76002-Q1/LM76003-Q1 provides exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization, FPWM option, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency. This device requires few external components and has a pinout designed for simple PCB layout with best-in-class EMI (CISPR25) and thermal performance. Protection features include input undervoltage lockout, thermal shutdown, cycle-by-cycle current limit, and short-circuit protection. The LM76002-Q1/LM76003-Q1 device is available in the WQFN 30-pin leadless package with wettable flanks. The LM76002-Q1/LM76003-Q1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2.5 A (LM76002-Q1) or 3.5 A (LM76003-Q1) of load current from an input up to 60 V. The LM76002-Q1/LM76003-Q1 provides exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization, FPWM option, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency. This device requires few external components and has a pinout designed for simple PCB layout with best-in-class EMI (CISPR25) and thermal performance. Protection features include input undervoltage lockout, thermal shutdown, cycle-by-cycle current limit, and short-circuit protection. The LM76002-Q1/LM76003-Q1 device is available in the WQFN 30-pin leadless package with wettable flanks.
