039530 Series

Manufacturer: Molex

Catalog

Catalog

TERM BLOCK PLUG 18POS STR 5.08MM

...

Part	Positions Per Level	Insulation Height	Insulation Height	Features	Voltage - UL	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Screw Size	Color	Mounting Type	Wire Strip Length	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch [x]	Pitch [x]	Termination Style	Type	Number of Levels	Contact Mating Finish	Torque - Screw	Torque - Screw	Housing Material
Molex 0395305218	18	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395300715	15	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	15	12 AWG	26 AWG	M3	Black	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Gold	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon

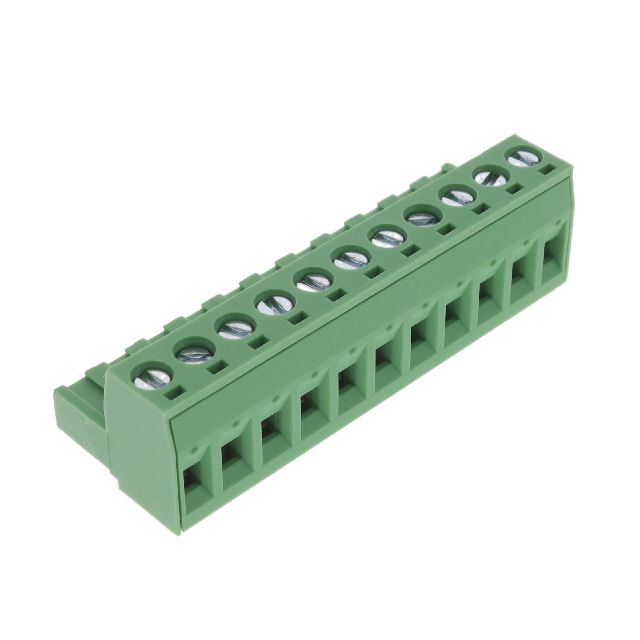

Molex 0395305011	11	0.591 in	15 mm		300 V	11	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305222	22	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	22 positions	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305518	18	0.591 in	15 mm		300 V	18	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Gold	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305504	4	0.591 in	15 mm		300 V	4	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Gold	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305020	20	0.591 in	15 mm		300 V	20	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395300122	22	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	22 positions	12 AWG	26 AWG	M3	Black	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305021	21	0.591 in	15 mm		300 V	21	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395300223	23	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	23	12 AWG	26 AWG	M3	Black	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
