LB25WKG01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Panel Cutout Dimensions [diameter]	Circuit	Ingress Protection	Color - Actuator/Cap	Voltage Rating - DC	Mounting Type	Actuator Type	Type	Switch Function	Voltage Rating - AC	Illumination Type, Color	Current Rating (Amps)	Illumination Voltage (Nominal)	Termination Style
NKK Switches LB25WKG01-5F-JF	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Clear	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V	Green LED	0.4 VA	2.1 VDC	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB25WKG01-5F05-JF	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Clear	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V	Green LED	0.4 VA	5 VDC	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB25WKG01-6G-JB	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Clear	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V	Blue LED	0.4 VA	3.6 VDC	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB25WKG01-5C12-JC	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Clear	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V	LED Red	0.4 VA	12 VDC	Solder Quick Connect - 0.110" (2.8mm)

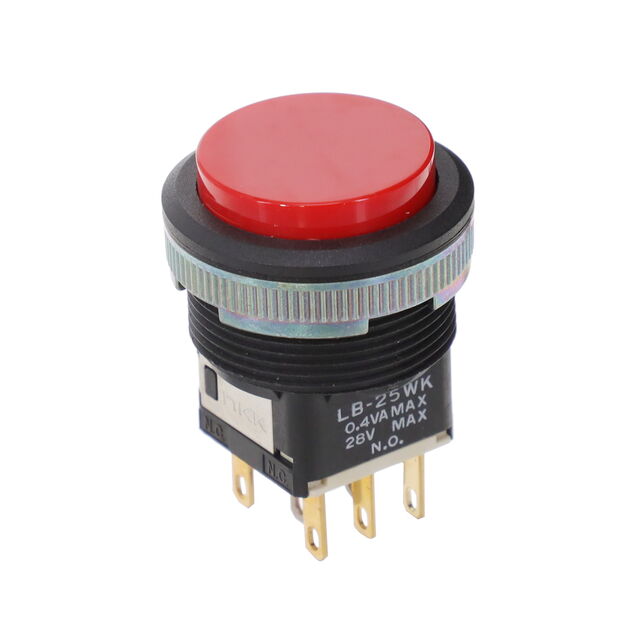

NKK Switches LB25WKG01-CJ	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Red	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V		0.4 VA		Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB25WKG01-6B-JB	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Clear	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V	LED White	0.4 VA	3.3 VDC	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB25WKG01-5C-JC	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Clear	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V	LED Red	0.4 VA	1.9 VDC	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB25WKG01-5F12-JF	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Clear	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V	Green LED	0.4 VA	12 VDC	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches LB25WKG01-5F24-JF	100000 Cycles	1000000 Cycles	50 °C	-25 °C	No Marking	22 mm	DPDT	IP65 - Dust Tight Water Resistant	Clear	28 V	Panel Mount Front	Button Round	Illuminated Standard	On-Mom	28 V	Green LED	0.4 VA	24 V	Solder Quick Connect - 0.110" (2.8mm)
