SRS8 Series

Catalog

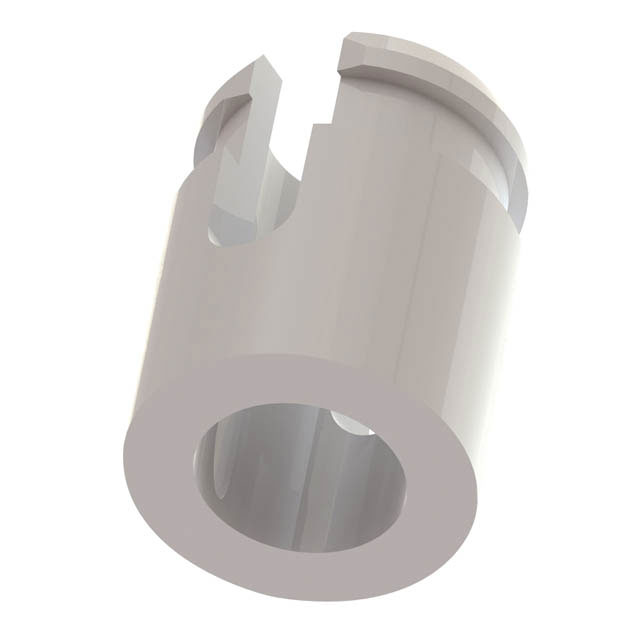

BRD SPT SNAP LOCK SCREW MNT 7/8"

Part	Mounting Type	Holding Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Material	Length - Overall	Length - Overall	Length - Overall	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]	Length - Overall
Essentra Components SRS8-14-01	Screw Mount	Snap Lock	5.9 mm	0.232 in	22.23 mm	0.875 in	0.875 in	Nylon	25.4 mm	1 "	1 "	5.9 mm	0.232 in	1.57 mm	0.062 in	0.0625 in	0.062 "	0.0625 "	1.57 mm
Essentra Components SRS8-6-01	Screw Mount	Snap Lock	5.9 mm	0.232 in	9.53 mm	0.375 "	0.375 in	Nylon				5.9 mm	0.232 in	1.57 mm	0.062 in	0.0625 in	0.062 "	0.0625 "	1.57 mm	0.5 in	1/2	12.7 mm

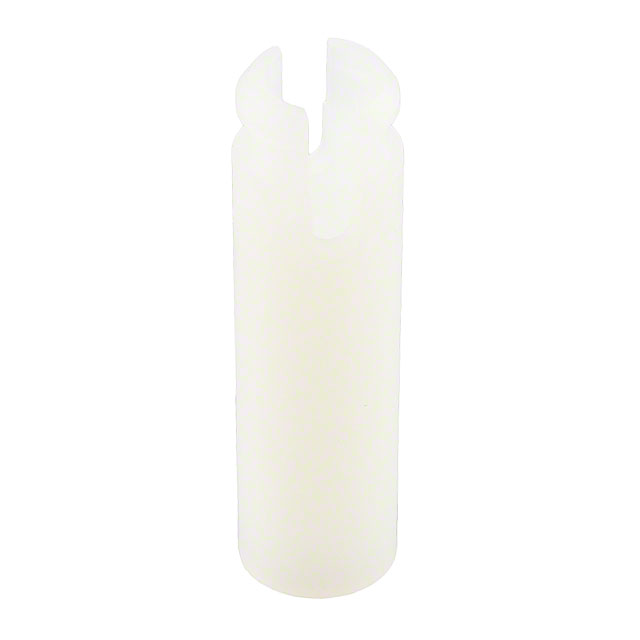

Essentra Components SRS8-2-14-01	Screw Mount	Snap Lock	5.9 mm	0.232 in	22.23 mm	0.875 in	0.875 in	Nylon	26.05 mm			5.9 mm	0.232 in	1.57 mm	0.062 in	0.0625 in	0.087 in		2.2 mm				1.026 in
Essentra Components SRS8-2-7-01	Screw Mount	Snap Lock	5.9 mm	0.232 in	11.13 mm	0.4375 "	0.438 in	Nylon				5.9 mm	0.232 in	1.57 mm	0.062 in	0.0625 in	0.087 in		2.2 mm	0.589 in		14.95 mm
Essentra Components SRS8-7-01	Screw Mount	Snap Lock	5.9 mm	0.232 in	11.13 mm	0.4375 "	0.438 in	Nylon				5.9 mm	0.232 in	1.57 mm	0.062 in	0.0625 in	0.062 "	0.0625 "	1.57 mm	0.563 in		14.3 mm
Essentra Components SRS8-8-01	Screw Mount	Snap Lock	5.9 mm	0.232 in	12.7 mm	0.5 in	0.5 in	Nylon				5.9 mm	0.232 in	1.57 mm	0.062 in	0.0625 in	0.062 "	0.0625 "	1.57 mm	0.626 in		15.9 mm
