V7-2A2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

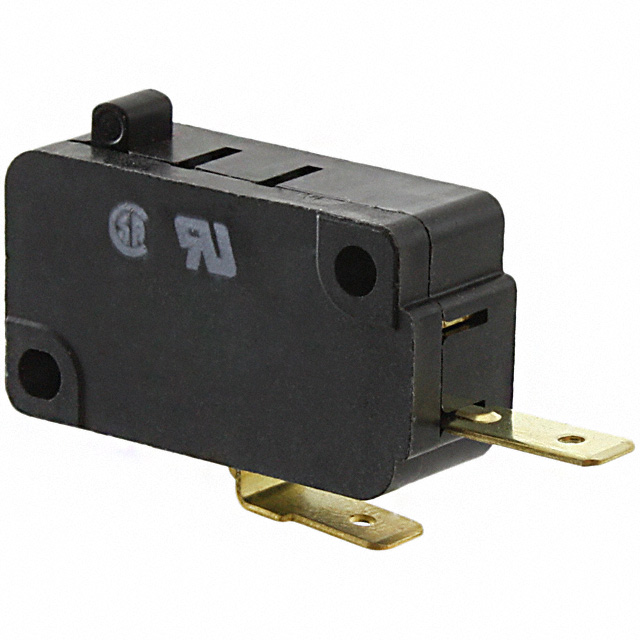

SWITCH SNAP ACT SPST-NO 5A 125V
| Part | Electrical Life | Circuit | Overtravel [custom] | Overtravel [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Mounting Type | Voltage Rating - AC | Operating Force | Current Rating (Amps) | Pretravel | Pretravel | Operating Position | Operating Position | Mechanical Life | Switch Function | Differential Travel [x] | Differential Travel [x] | Termination Style | Release Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 100000 Cycles | SPST-NO | 1.27 mm | 0.05 " | 85 °C | -40 C | Round (Pin Plunger) | Chassis Mount | 125 V | 75 gf | 5 A | 1.2 mm | 0.047 in | 14.7 mm | 0.579 in | 10000000 Cycles | Off-Mom | 0.01 in | 0.25 mm | Quick Connect | 10 gf |
