MAXM15462 Series

4.5V to 42V, 300mA Himalaya uSLIC Step-Down Power Module

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

4.5V to 42V, 300mA Himalaya uSLIC Step-Down Power Module

Part	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Control Features	Number of Outputs	Type	Applications	Supplier Device Package	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features	Mounting Type	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Frequency - Switching	Regulator Topology	Main Purpose	Utilized IC / Part	Contents
Analog Devices Inc./Maxim Integrated MAXM15462AMB+	4.5 V	125 °C	-40 C	0.3 A	Active High Enable	1	Non-Isolated PoL Module	ITE (Commercial)	10-eMGA (3x2.6)	10-SMD Module	0.12 inches	2.6 mm	0.06 "	0.1 in	1.5 mm	3 mm	42 V	5 V	0.9 V	OCP OTP UVLO	Surface Mount

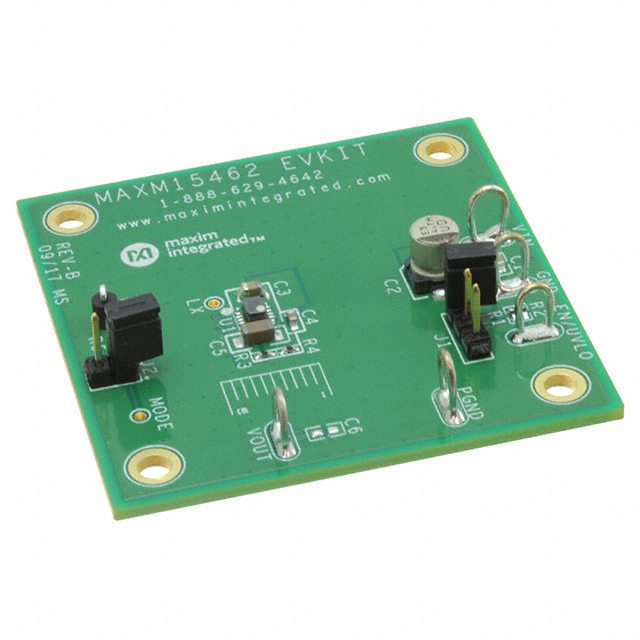

Analog Devices Inc./Maxim Integrated MAXM15462EVKIT#																						Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	300 mA	42 V	4.5 V	3.3 V	500 kHz	Buck	DC/DC Step Down	MAXM15462	Board(s)
Analog Devices Inc./Maxim Integrated MAXM15462AMB+T	4.5 V	125 °C	-40 C	0.3 A	Active High Enable	1	Non-Isolated PoL Module	ITE (Commercial)	10-eMGA (3x2.6)	10-SMD Module	0.12 inches	2.6 mm	0.06 "	0.1 in	1.5 mm	3 mm	42 V	5 V	0.9 V	OCP OTP	Surface Mount

Catalog

4.5V to 42V, 300mA Himalaya uSLIC Step-Down Power Module

Description

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power-supply solutions. The MAXM15462/MAXM15463/MAXM15464 are a family of high-efficiency, synchronous step-down DC-DC modules with integrated controller, MOSFETs, compensation components, and inductor that operate over a wide input-voltage range. The modules operate from 4.5V to 42V input and deliver up to 300mA output current. The MAXM15463 and MAXM15464 are fixed 3.3V and 5V output modules respectively. The MAXM15462 is an adjustable output (0.9V to 5V) module. The modules significantly reduce design complexity, manufacturing risks, and offer a true plug and play power/ supply solution, reducing time-to-market.The MAXM15462/3/4 modules employ peak-currentmode control architecture. To reduce input inrush current, the modules offer a fixed 4.1ms soft-start time.The MAXM15462/3/4 modules are available in a low profile, compact 10-pin, 2.6mm × 3mm × 1.5mm, uSLIC™package.Applications4-20mA Current-Loop Powered SensorsBattery-Powered EquipmentGeneral Purpose Point-of-LoadHVAC and Building ControlIndustrial Sensors and Process ControlLDO Replacement
