KMF1.1123 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Voltage Rating - Appliance Inlet	Mounting Type	Termination	Termination	Termination	Approval Agency	Switch Features	Connector Style	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Features	Filter Type	Ingress Protection	Fuse Holder, Drawer	Current Rating - Filter	Connector Type	Current Rating - Appliance Inlet

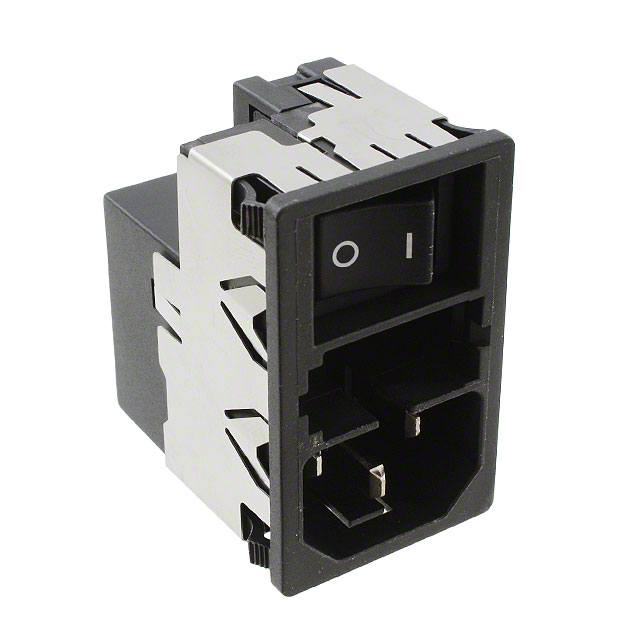

SCHURTER Inc. KMF1.1123.11	250 VAC	Panel Mount Snap-In	0.189 "	4.8 mm	Quick Connect	CCC cULus ENEC	Switch On-Off	IEC 320-C14	2.5 mm	0.039 in	0.098 in	1 mm	28.8 mm	47.8 mm	UL94 V-0	Shielded	Filtered (EMI RFI) - Commercial Medical	IP40	Drawer Sold Separate	2 A	Receptacle Male Blades - Module	10 A
SCHURTER Inc. KMF1.1123.1101		Panel Mount Snap-In	0.189 "	4.8 mm	Quick Connect				2.5 mm	0.039 in	0.098 in	1 mm				Shielded

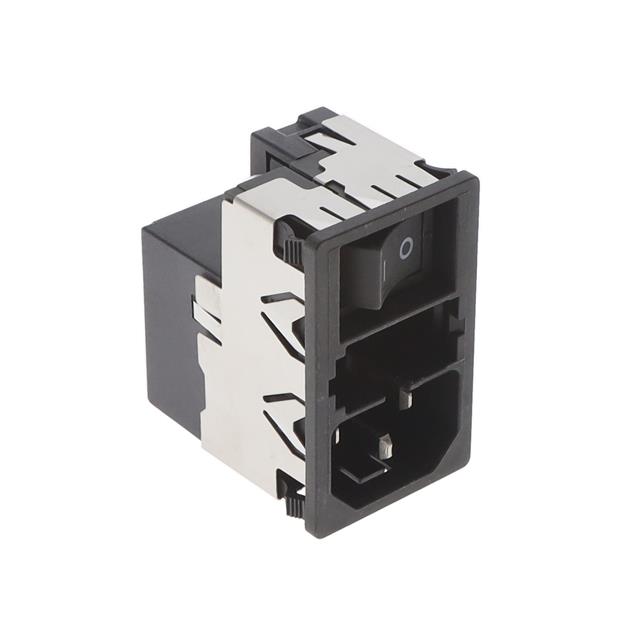

SCHURTER Inc. KMF1.1123.1102		Panel Mount Snap-In	0.189 "	4.8 mm	Quick Connect				2.5 mm	0.039 in	0.098 in	1 mm				Shielded
