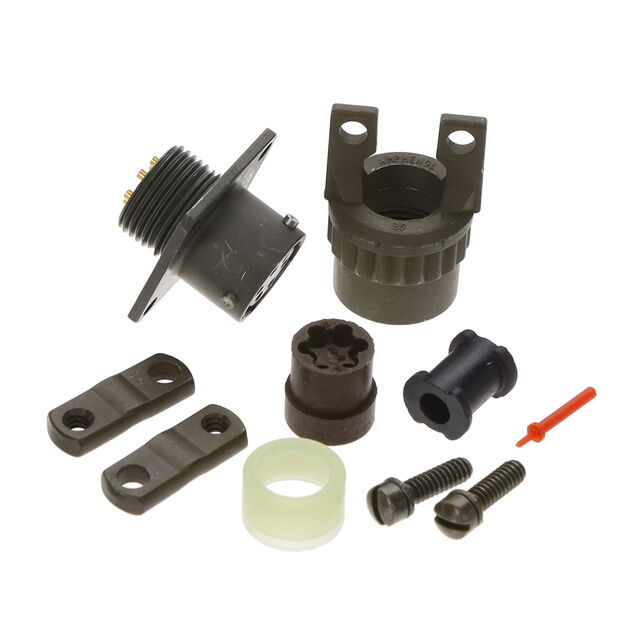

MS3110F10 Series
Manufacturer: Amphenol Aerospace Operations
Catalog
MIL-26482 MS/PT/CMB RECEPT
| Part | Mounting Type | Qualification | Contact Material | Termination | Current Rating | Insert Material | Color | Shell Size - Insert Length | Shell Size - Insert Width | Primary Material | Mounting Feature | Grade | Shielding | Voltage Rating | Contact Finish - Mating | Fastening Type | Orientation | Ingress Protection | Shell Material | Shell Finish | Applications | Operating Temperature (Max) | Operating Temperature (Min) | Number of Positions | Connector Type | Backshell Material | Plating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Panel Mount | MIL-DTL-26482 Series I | Copper Alloy | Solder Cup | 7.5 A | Neoprene | Olive Drab | 10 mm | 6 mm | Metal | Flange | Military | Unshielded | 600 V | Gold | Bayonet Lock | N (Normal) | Environment Resistant | Aluminum Alloy | Cadmium Olive Drab Chromate | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | 125 °C | -55 °C | 6 | Female Sockets Receptacle | |||
 Amphenol Aerospace Operations | Panel Mount | MIL-DTL-26482 Series I | Copper Alloy | Solder Cup | Neoprene | Olive Drab | 10 mm | 6 mm | Metal | Flange | Military | Unshielded | Gold | Bayonet Lock | N (Normal) | Environment Resistant | Aluminum | Cadmium Olive Drab Chromate | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | 125 °C | -55 °C | 6 | Male Pins Receptacle | Aluminum | Olive Drab Chromate over Cadmium | Backshell Cable Clamp | ||
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
 Amphenol Aerospace Operations | Panel Mount | MIL-DTL-26482 Series I | Copper Alloy | Solder Cup | Neoprene | Olive Drab | 10 mm | 6 mm | Metal | Flange | Military | Unshielded | Gold | Bayonet Lock | N (Normal) | Environment Resistant | Aluminum | Cadmium Olive Drab Chromate | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | 125 °C | -55 °C | 6 | Female Sockets Receptacle | Aluminum | Olive Drab Chromate over Cadmium | Backshell Cable Clamp | ||
Amphenol Aerospace Operations |
