CBTFS Series
Manufacturer: Essentra Components
Beta
⌘K

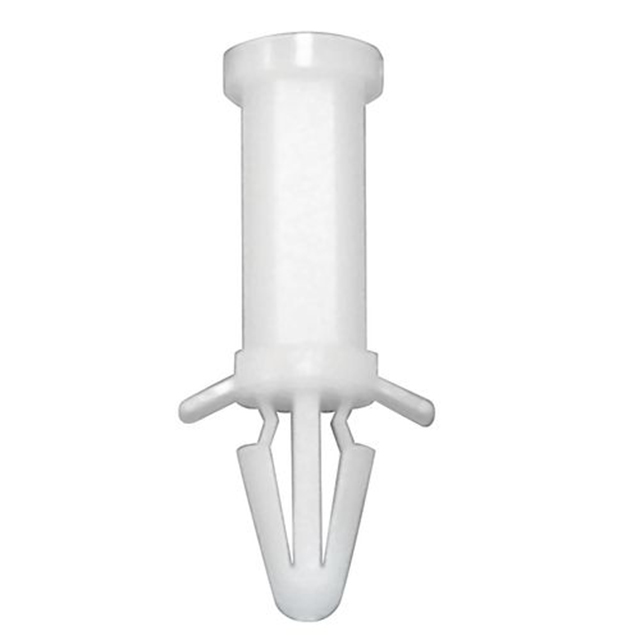

PCB SUPPORT,TOP HOLE:SNAP LOCK 4
| Part | Material | Mounting Type | Holding Type | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Features | Between Board Height | Between Board Height [z] | Support Panel Thickness [Max] | Support Panel Thickness [Min] | Support Panel Thickness [Min] | Support Panel Thickness [Max] | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Nylon | Screw Mount | Snap Lock | 3.99 mm | 0.157 " | ||||||||
Essentra Components | Nylon | Screw Mount | Snap Lock | 3.99 mm | 0.157 " | M3 Thread | 15 mm | 0.591 in | 0.067 in | 1.2 mm | 0.047 in | 1.7 mm | |
Essentra Components | Nylon | Screw Mount | Snap Lock | 3.99 mm | 0.157 " | M3 Thread | 35 mm | 0.067 in | 1.2 mm | 0.047 in | 1.7 mm | 1.378 in |
