5160C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

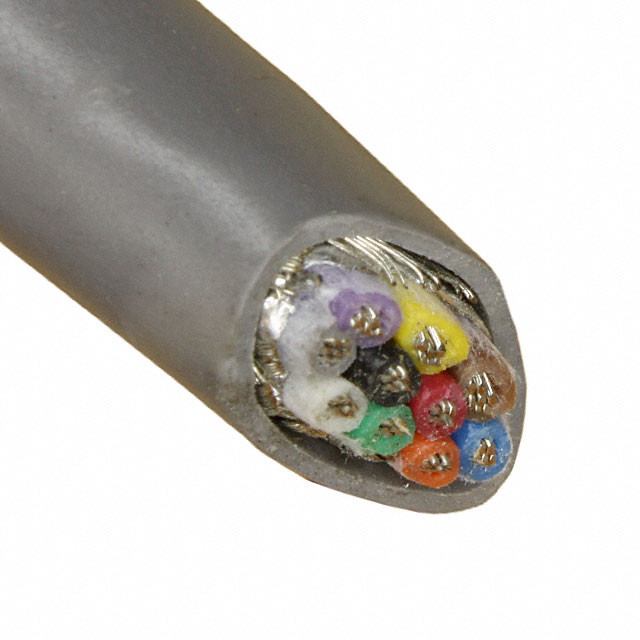

CABLE 10 COND 20AWG BLACK 1000'
| Part | Shield Material | Shield Coverage | Wire Gauge | Conductor Insulation | Cable Type | Ratings | Usage | Jacket Color | Features | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Shield Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Number of Conductors [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 20 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | ISO 10993 UL Style 2464 | Communication Control | Black | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Copper Tinned | Braid Foil | 300 VDC | 0.813 mm | 0.032 in | 28 AWG | 7 | 0.376 in | 9.55 mm | 304.8 m | 1000 ft | 10 | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 20 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | ISO 10993 UL Style 2464 | Communication Control | Slate | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Copper Tinned | Braid Foil | 300 VDC | 0.813 mm | 0.032 in | 28 AWG | 7 | 0.376 in | 9.55 mm | 304.8 m | 1000 ft | 10 | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 20 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | ISO 10993 UL Style 2464 | Communication Control | Slate | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Copper Tinned | Braid Foil | 300 VDC | 0.813 mm | 0.032 in | 28 AWG | 7 | 0.376 in | 9.55 mm | 10 | 100 ft | 30.5 m |
