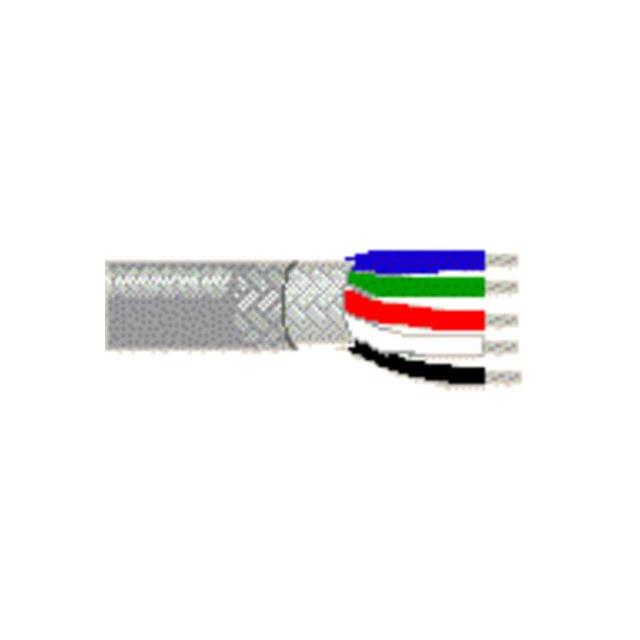

8405 Series
Manufacturer: Belden Inc.
Beta
⌘K
5 #20 PE SHLD PVC
| Part | Shield Coverage | Shield Material | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Wire Gauge | Ratings | Length | Length | Jacket Color | Conductor Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned Viscose | Audio | 0.035 in | 0.889 mm | Microphone | 20 AWG | AWM Style 2094 | 304.8 m | 1000 ft | Chrome | Copper Tinned | 5 | 19 | 32 AWG | -20 ░C | 60 °C | 300 VDC | Double Braid | 0.281 in | 7.14 mm | Poly-Vinyl Chloride (PVC) | Polyethylene (PE) |
Belden Inc. | 85 % | Copper Tinned Viscose | Audio | 0.035 in | 0.889 mm | Microphone | 20 AWG | AWM Style 2094 | 152.4 m | 500 ft | Chrome | Copper Tinned | 5 | 19 | 32 AWG | -20 ░C | 60 °C | 300 VDC | Double Braid | 0.281 in | 7.14 mm | Poly-Vinyl Chloride (PVC) | Polyethylene (PE) |
Belden Inc. | 85 % | Copper Tinned Viscose | Audio | 0.035 in | 0.889 mm | Microphone | 20 AWG | AWM Style 2094 | 76.2 m | 250 ft | Chrome | Copper Tinned | 5 | 19 | 32 AWG | -20 ░C | 60 °C | 300 VDC | Double Braid | 0.281 in | 7.14 mm | Poly-Vinyl Chloride (PVC) | Polyethylene (PE) |
