PPTC062 Series

Catalog

CONN HDR 12POS 0.1 TIN SMD

Part	Contact Material	Insulation Material	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Voltage Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Number of Positions	Mounting Type	Insulation Color	Fastening Type	Termination	Insulation Height [z]	Insulation Height	Number of Rows [custom]	Connector Type	Contact Type	Contact Finish - Post	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Height [z]
Sullins Connector Solutions PPTC062KFMS	Phosphor Bronze	Polyester	Square	125 °C	-40 C	All	250 V	0.1 "	2.54 mm	0.1 in	2.54 mm	3 A	12	Surface Mount	Black	Push-Pull	Solder	0.299 "	7.6 mm	2	Header	Female Socket	Tin	UL94 V-0

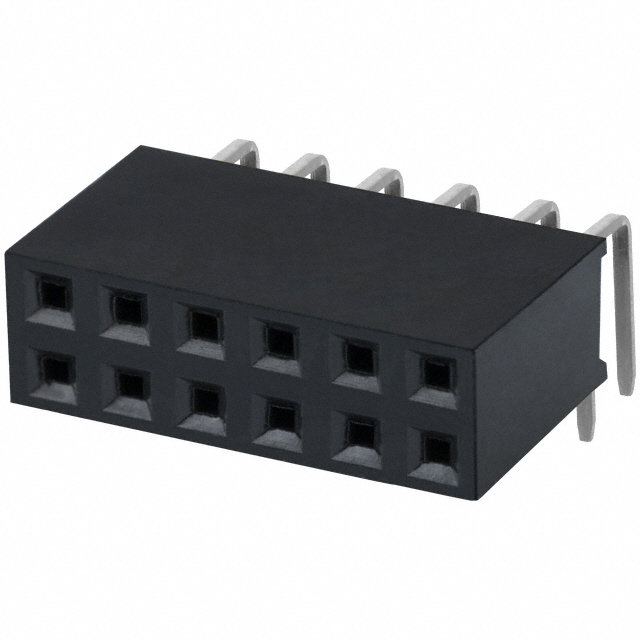

Sullins Connector Solutions PPTC062LJBN-RC	Phosphor Bronze	Polyester	Square	105 ░C	-40 C	All	250 V	0.1 "	2.54 mm	0.1 in	2.54 mm	3 A	12	Right Angle Through Hole	Black	Push-Pull	Solder	0.2 in		2	Header	Female Socket	Tin	UL94 V-0	0.124 in	3.15 mm	5.08 mm
Sullins Connector Solutions PPTC062LJBN	Phosphor Bronze	Polyester	Square	105 ░C	-40 C	All	250 V	0.1 "	2.54 mm	0.1 in	2.54 mm	3 A	12	Right Angle Through Hole	Black	Push-Pull	Solder	0.2 in		2	Header	Female Socket	Tin	UL94 V-0	0.124 in	3.15 mm	5.08 mm
