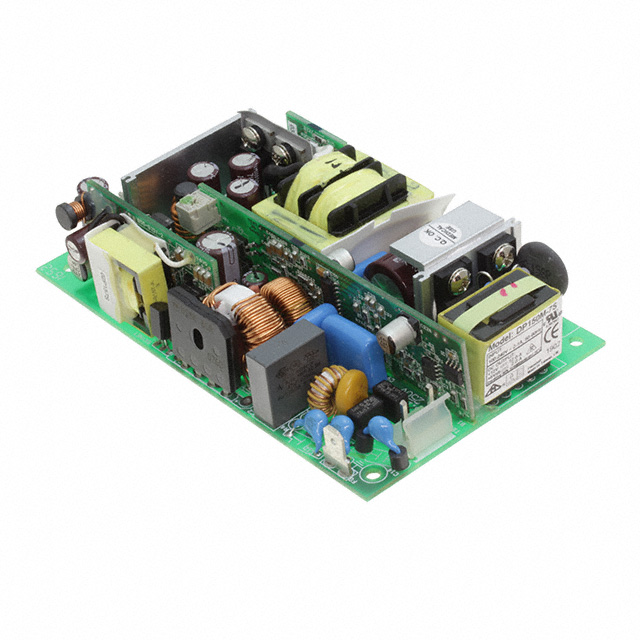

DP150M Series
Manufacturer: Tri-Mag, LLC
Beta
⌘K
AC/DC CONVERTER 15V 150W
| Part | Minimum Load Required | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Power (Watts) | Voltage - Output 1 | Number of Outputs | Mounting Type | Approval Agency | Features | Type | Applications | Efficiency | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tri-Mag, LLC | 70 °C | -20 °C | 264 VAC | 90 VAC | 9.6 A | 5 " | 127 mm | 76.2 mm | 3 " | 36.1 mm | 1.42 " | 150 W 220 W | 15 V | 1 | Chassis Mount | CB CE | PFC Remote Sense Standby Output Universal Input | Open Frame | Medical | 89 % | ||
 Tri-Mag, LLC | 70 °C | -20 °C | 264 VAC | 90 VAC | 12 A | 5 " | 127 mm | 76.2 mm | 3 " | 36.1 mm | 1.42 " | 150 W 220 W | 12 V | 1 | Chassis Mount | CB CE | PFC Remote Sense Standby Output Universal Input | Open Frame | Medical | 89 % | ||
Tri-Mag, LLC | 70 °C | -20 °C | 264 VAC | 90 VAC | 8 A | 5 " | 127 mm | 76.2 mm | 3 " | 36.1 mm | 1.42 " | 150 W 220 W | 18 V | 1 | Chassis Mount | CB CE | PFC Remote Sense Standby Output Universal Input | Open Frame | Medical | 89 % | ||
Tri-Mag, LLC | 70 °C | -20 °C | 264 VAC | 90 VAC | 4 A | 5 " | 127 mm | 76.2 mm | 3 " | 36.1 mm | 1.42 " | 150 W 220 W | 1 | Chassis Mount | CB CE | PFC Remote Sense Standby Output Universal Input | Open Frame | Medical | 89 % | 36 V | ||
Tri-Mag, LLC | 70 °C | -20 °C | 264 VAC | 90 VAC | 5.1 A | 5 " | 127 mm | 76.2 mm | 3 " | 36.1 mm | 1.42 " | 150 W 220 W | 28 V | 1 | Chassis Mount | CB CE | PFC Remote Sense Standby Output Universal Input | Open Frame | Medical | 89 % |
