150179 Series
Manufacturer: Molex
Beta
⌘K
STANDARD .062"+ RECEPTACLE HOUSING, DUAL ROW, 8 CIRCUITS
| Part | Pitch | Pitch | Insulation Material | Fastening Type | Connector Type | Number of Positions | Mounting Type | Color | Row Spacing | Row Spacing | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Number of Rows [custom] | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 3.68 mm | 0.145 in | Nylon 6/6 Polyamide (PA66) | Detent Lock | Receptacle | 8 | Free Hanging (In-Line) | Natural | 0.145 in | 3.68 mm | Female Socket | -40 C | 105 ░C | Crimp | 2 | |

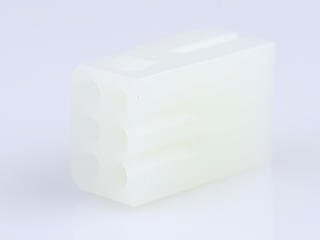

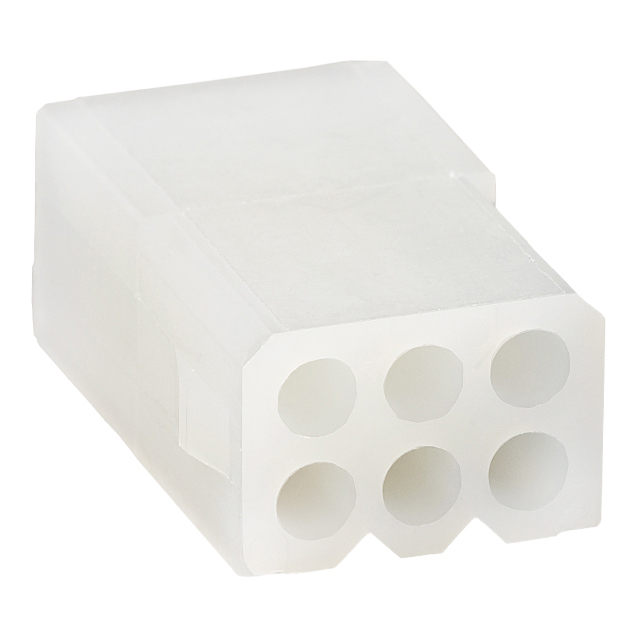

 Molex | 3.68 mm | 0.145 in | Nylon 6/6 Polyamide (PA66) | Detent Lock | Receptacle | 6 | Free Hanging (In-Line) | Natural | 0.145 in | 3.68 mm | Female Socket | -40 C | 105 ░C | Crimp | 2 | Contacts Not Included |

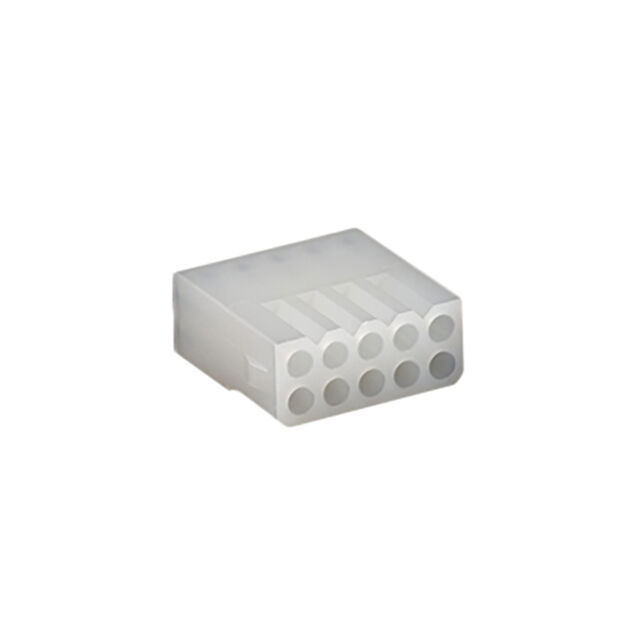

 Molex | 3.68 mm | 0.145 in | Nylon 6/6 Polyamide (PA66) | Detent Lock | Receptacle | 10 | Free Hanging (In-Line) | Natural | 0.145 in | 3.68 mm | Female Socket | -40 C | 105 ░C | Crimp | 2 | Contacts Not Included |
