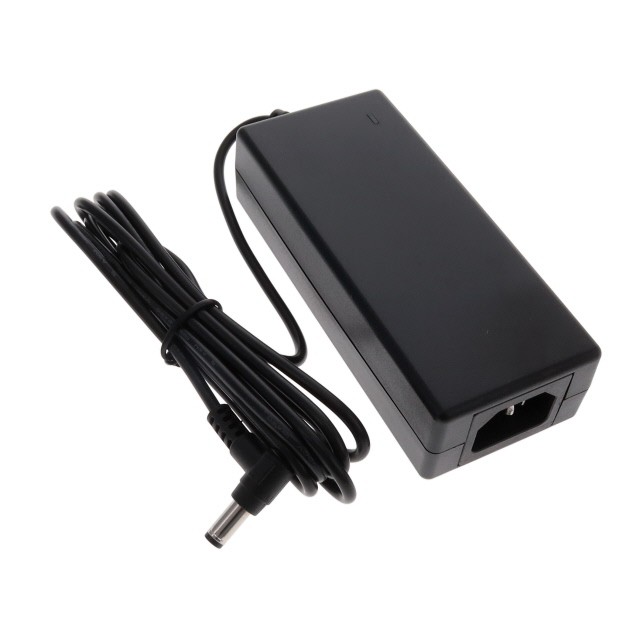

TRH50A360 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC DESKTOP ADAPTER 36V 50W
| Part | Standard Number | Approval Agency | Form | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Cord Length | Cord Length | Applications | Output Connector | Output Connector [diameter] | Output Connector [z] | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Input Connector | Voltage - Output | Input Type | Polarization | Current - Output (Max) [Max] | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 60950-1 62368-1 | CE cULus FCC GS PSE TUV | Desktop (Class I) | -20 ░C | 70 °C | 2.05 in | 120 mm | 1.22 in | 52 mm | 31 mm | 4.72 " | CoC Tier 2 Level VI | 70.9 " | 1.8 m | ITE (Commercial) | Barrel Plug R/A | 2.1 mm 5.5 mm | 12 mm | International | 264 VAC | 90 VAC | 50 W | IEC 320-C14 | 36 V | Cord (Sold Separately) | Positive Center | 1.4 A | 150 mW |
