1031A Series
Manufacturer: Belden Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

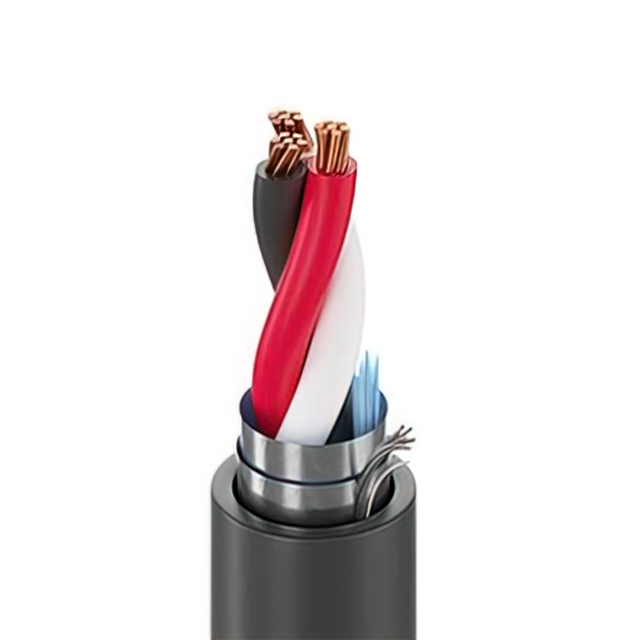

CABLE 3COND 16AWG BLK SHLD
| Part | Features | Shield Type | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Thickness | Voltage | Jacket (Insulation) Diameter | Ratings | Jacket Color | Conductor Insulation | Wire Gauge | Length | Operating Temperature (Min) | Operating Temperature (Max) | Number of Conductors - Triad | Conductor Arrangement | Number of Conductors | Conductor Strand Gauge | Conductor Strand Count | Conductor Material | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Drain Wire Rip Cord | Foil | Poly-Vinyl Chloride (PVC) | Conductor Multi | 0.037 in | 300 V | 0.299 in | 2464 Style UL | Black | Poly-Vinyl Chloride (PVC) | 16 AWG | 1000 ft | -30 °C | 105 °C | 1 | Twisted | 3 | 24 AWG | 7 Strands | Bare Copper | 100 % | Aluminum |
 Belden Inc. | Drain Wire Rip Cord | Foil | Poly-Vinyl Chloride (PVC) | Conductor Multi | 0.037 in | 300 V | 0.299 in | 2464 Style UL | Blue | Poly-Vinyl Chloride (PVC) | 16 AWG | 1000 ft | -30 °C | 105 °C | 1 | Twisted | 3 | 24 AWG | 7 Strands | Bare Copper | 100 % | Aluminum |
 Belden Inc. | Drain Wire Rip Cord | Foil | Poly-Vinyl Chloride (PVC) | Conductor Multi | 0.037 in | 300 V | 0.299 in | 2464 Style UL | Black | Poly-Vinyl Chloride (PVC) | 16 AWG | 10000 ft | -30 °C | 105 °C | 1 | Twisted | 3 | 24 AWG | 7 Strands | Bare Copper | 100 % | Aluminum |
Belden Inc. | Drain Wire Rip Cord | Foil | Poly-Vinyl Chloride (PVC) | Conductor Multi | 0.037 in | 300 V | 0.299 in | 2464 Style UL | Black | Poly-Vinyl Chloride (PVC) | 16 AWG | 5000 ft | -30 °C | 105 °C | 1 | Twisted | 3 | 24 AWG | 7 Strands | Bare Copper | 100 % | Aluminum |
