VJD2S00B Series

Catalog

SWITCH ROCKER DPDT 20A 12V

Part	Electrical Life	Mechanical Life	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Switch Function	Ingress Protection	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking	Voltage Rating - DC	Approval Agency	Actuator Type	Mounting Type
Carling Technologies VJD2S00B-AZB00-000	100000 Cycles	100000 Cycles	Quick Connect - 0.250" (6.3mm)	20 A	85 °C	-40 C	Black	On-Off-On	IP66 IP68	DPDT	36.83 mm	21.08 mm	No Marking	12 V	CSA UL VDE	Convex (Reverse V)	Panel Mount Snap-In

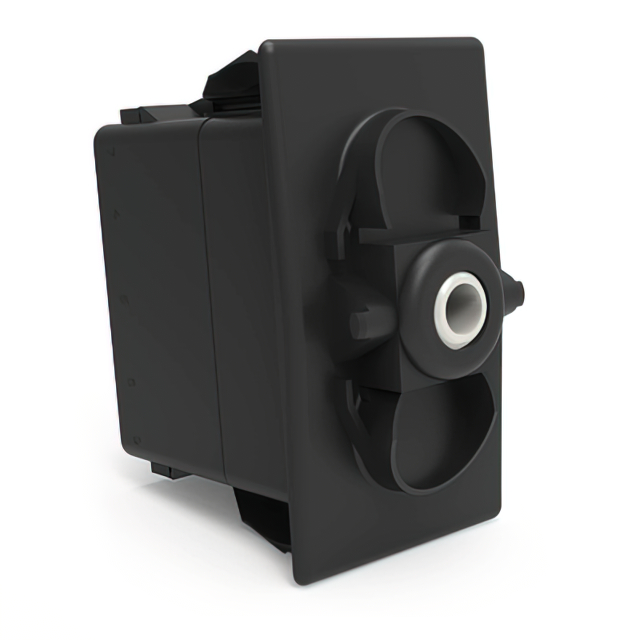

Carling Technologies VJD2S00B-00000-000	100000 Cycles	100000 Cycles	Quick Connect - 0.250" (6.3mm)	20 A	85 °C	-40 C		On-Off-On	IP66 IP68	DPDT	36.83 mm	21.08 mm	Varies by Cap	12 V	CSA UL VDE	Actuator Arm Cap Required	Panel Mount Snap-In
Carling Technologies VJD2S00B-AZC00-000	100000 Cycles	100000 Cycles	Quick Connect - 0.250" (6.3mm)	20 A	85 °C	-40 C	Black	On-Off-On	IP66 IP68	DPDT	36.83 mm	21.08 mm	No Marking	12 V	CSA UL VDE	Convex (Reverse V)	Panel Mount Snap-In
