745-146 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 146POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Number of Positions	Gender	Contact Type	Contact Finish	Read Out	Color	Number of Rows [custom]	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Card Type
EDAC Inc. 745-146-540-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	146	Female	Cantilever	Gold	Dual	Black	2	73	-40 C	105 ░C	Copper Alloy	Through Hole	Non Specified - Dual Edge

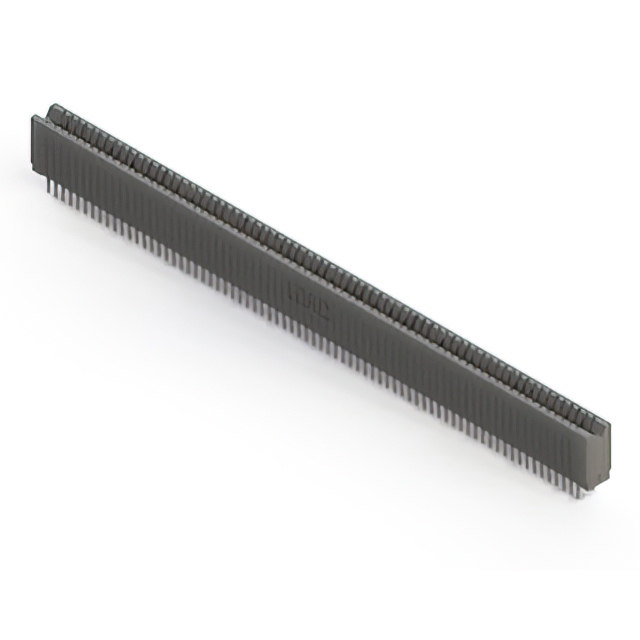

EDAC Inc. 745-146-545-206	2	Polyester Thermoplastic	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	146	Female	Cantilever	Gold	Dual	Black	2	73	-40 C	105 ░C	Copper Alloy	Through Hole	Non Specified - Dual Edge

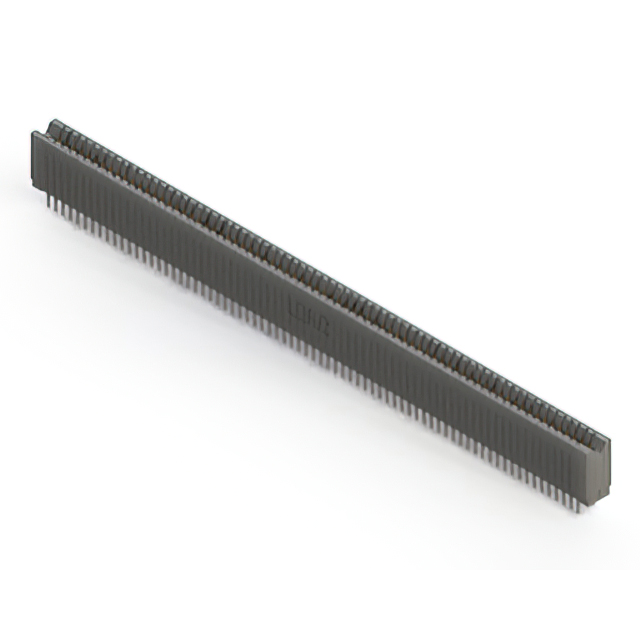

EDAC Inc. 745-146-560-206	2	Polyester Thermoplastic	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	146	Female	Cantilever Make Before Break	Gold	Dual	Black	2	73	-40 C	105 ░C	Copper Alloy	Through Hole	Non Specified - Dual Edge
EDAC Inc. 745-146-541-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	146	Female	Cantilever	Gold	Dual	Black	2	73	-40 C	105 ░C	Copper Alloy	Through Hole	Non Specified - Dual Edge
EDAC Inc. 745-146-525-206	2	Polyester Thermoplastic	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	146	Female	Cantilever	Gold	Dual	Black	2	73	-40 C	105 ░C	Copper Alloy	Through Hole	Non Specified - Dual Edge

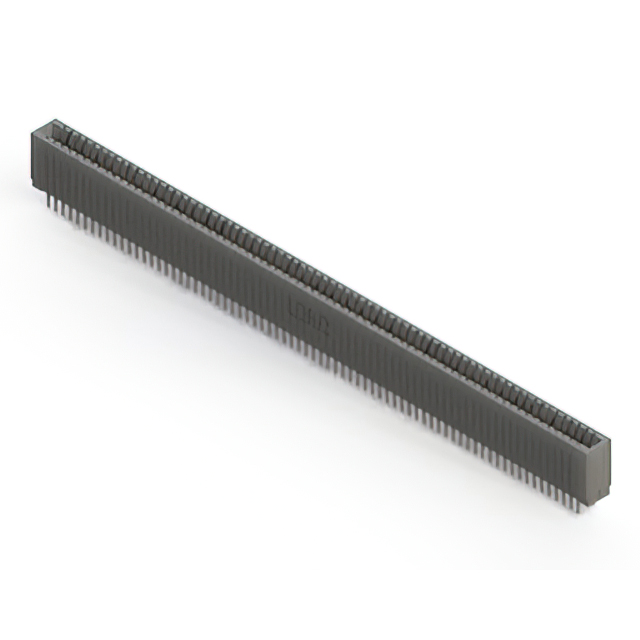

EDAC Inc. 745-146-525-201	2	Polyester Thermoplastic	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	146	Female	Cantilever	Gold	Dual	Black	2	73	-40 C	105 ░C	Copper Alloy	Through Hole	Non Specified - Dual Edge

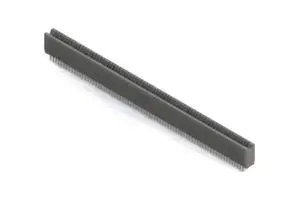

EDAC Inc. 745-146-520-206	2	Polyester Thermoplastic	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	146	Female	Cantilever	Gold	Dual	Black	2	73	-40 C	105 ░C	Copper Alloy	Through Hole	Non Specified - Dual Edge
