9182 Series
Manufacturer: Belden Inc.
Beta
⌘K

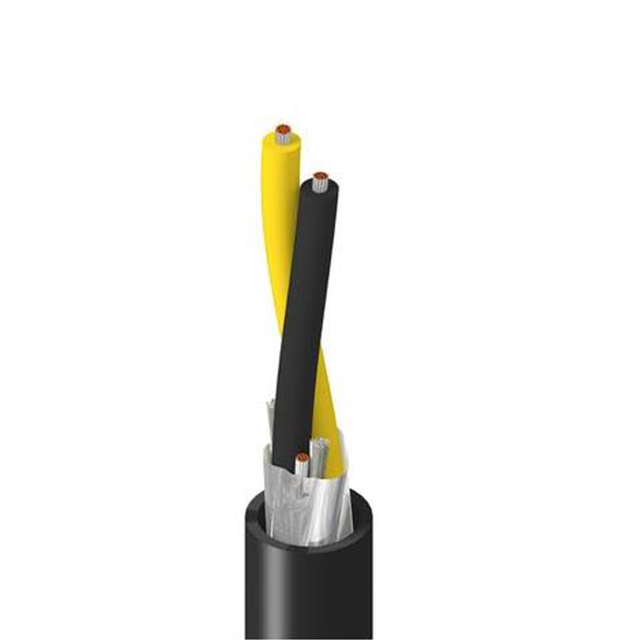

TWINAX 22AWG 150 OHM
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | VoP, Velocity of Propagation | Conductor Material | Shield Coverage | Shield Material | Cable Type | Jacket Color | Features | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Foam High Density Polyethylene (FHDPE) | -20 ░C | 60 °C | 78 | Copper Tinned | 100 % | Aluminum | Twinaxial | Black | Drain Wire | 304.8 m | 1000 ft | 0.345 in | 8.76 mm | 150 Ohms | 19 | 34 AWG | Foil | Poly-Vinyl Chloride (PVC) | 22 AWG |
