TPS82140 Series
Manufacturer: Texas Instruments
Beta
⌘K

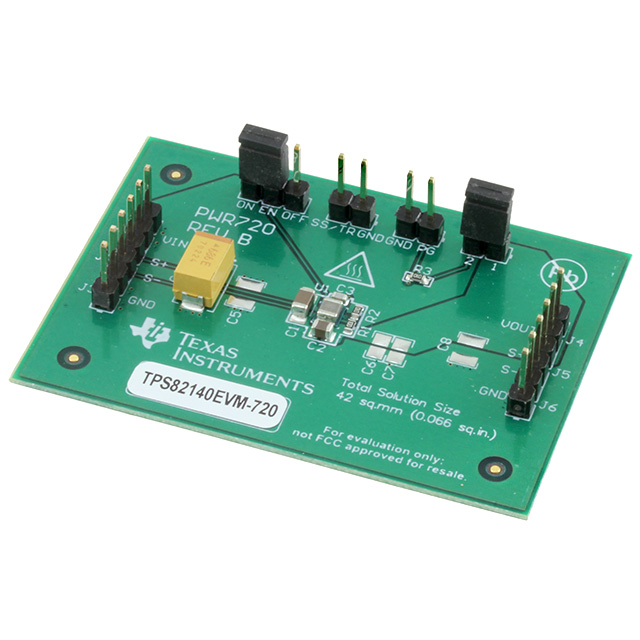

EVAL BOARD FOR TPS82140
| Part | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Main Purpose | Frequency - Switching | Contents | Voltage - Output | Regulator Topology | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Applications | Package / Case | Features | Supplier Device Package | Mounting Type | Number of Outputs | Control Features | Voltage - Input (Max) [Max] | Type | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | DC/DC Step Down | 2 MHz | Board(s) | 1.8 V | Buck | 2 A | 3 V | 17 V | |||||||||||||||||||||

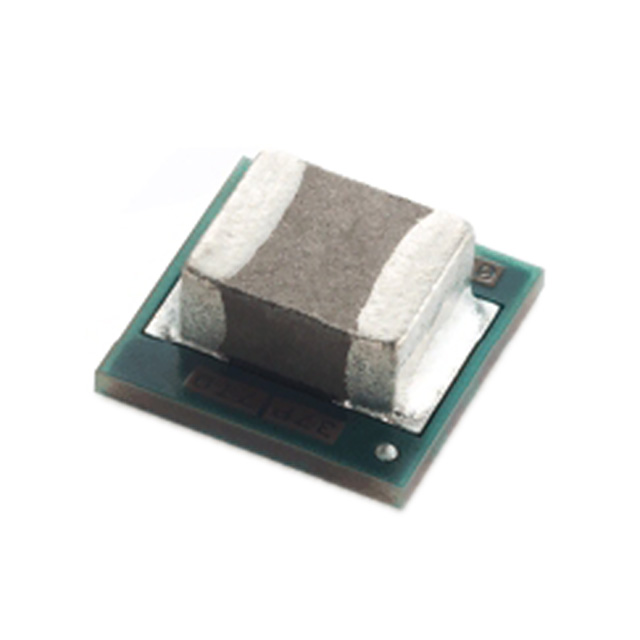

 Texas Instruments | 6 V | 0.9 V | -40 °C | 125 °C | 2 A | 3 mm | 1.5 mm | 0.12 inches | 0.11 " | 2.8 mm | 0.06 " | ITE (Commercial) | 8-LDFN Exposed Pad Module | OTP | 8-uSIP | Surface Mount | 1 | Active High Enable | 17 V | Non-Isolated PoL Module | 3 V | ||||||||||||
Texas Instruments | 6 V | 0.9 V | -40 °C | 125 °C | 2 A | 3 mm | 1.5 mm | 0.12 inches | 0.11 " | 2.8 mm | 0.06 " | ITE (Commercial) | 8-LDFN Exposed Pad Module | OTP | 8-uSIP (3x2.8) | Surface Mount | 1 | Active High Enable | 17 V | Non-Isolated PoL Module | 3 V |
