160013 Series

Manufacturer: Molex

Catalog

STAK50H 2 BAY INFOTAINMENT HYBRID HEADER, 32 CIRCUITS, BAY A: 14 CIRCUIT/KEY 2; BAY B: 18 CIRCUIT/KEY 4; 2.50MM PC TAIL LENGTH, UL 94 HB, GRAY, TUBE

Part	Termination	Insulation Material	Mounting Type	Insulation Color	Insulation Height	Insulation Height	Contact Type	Features	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions Loaded	Contact Shape	Contact Finish - Post	Shrouding	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions	Connector Type	Style	Applications	Material Flammability Rating
Molex 1600131624	Solder	Syndiotactic Polystyrene (SPS)	Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide	500 V	85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall	2.5 mm	0.098 in	Copper Alloy	32	Header	Board to Cable/Wire
Molex 1600130641	Solder	Syndiotactic Polystyrene (SPS)	Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide	500 V	85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall	2.11 mm	0.083 in	Copper Alloy	56	Header	Board to Cable/Wire
Molex 1600134141

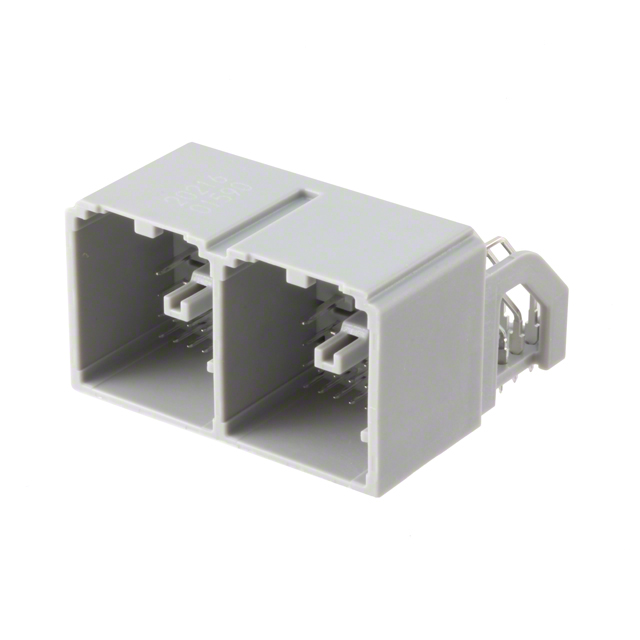

Molex 1600130023	Solder		Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide		85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall	2.11 mm	0.083 in	Copper Alloy	56	Header	Board to Cable/Wire	Automotive	UL94 HB

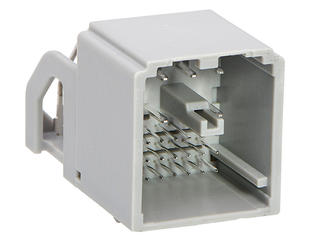

Molex 1600136604	Solder	Syndiotactic Polystyrene (SPS)	Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide	500 V	85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall			Copper Alloy	28	Header	Board to Cable/Wire
Molex 1600133641	Solder	Syndiotactic Polystyrene (SPS)	Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide	500 V	85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall	2.5 mm	0.098 in	Copper Alloy	56	Header	Board to Cable/Wire
Molex 1600133623	Solder	Syndiotactic Polystyrene (SPS)	Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide	500 V	85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall	2.5 mm	0.098 in	Copper Alloy	56	Header	Board to Cable/Wire
Molex 1600130623	Solder	Syndiotactic Polystyrene (SPS)	Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide	500 V	85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall	2.11 mm	0.083 in	Copper Alloy	56	Header	Board to Cable/Wire
Molex 1600132641	Solder	Syndiotactic Polystyrene (SPS)	Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide	500 V	85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall	2.11 mm	0.083 in	Copper Alloy	56	Header	Board to Cable/Wire

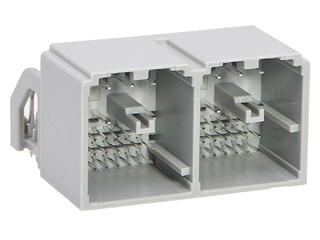

Molex 1600132041	Solder		Right Angle Through Hole	Gray	22.9 mm	0.902 in	Male Blade	Board Guide		85 °C	-40 C	Latch Holder	All	Rectangular	Tin	Shrouded - 4 Wall	2.11 mm	0.083 in	Copper Alloy	56	Header	Board to Cable/Wire	Automotive	UL94 HB
