WB3F200 Series
Manufacturer: JAE Electronics
Beta
⌘K

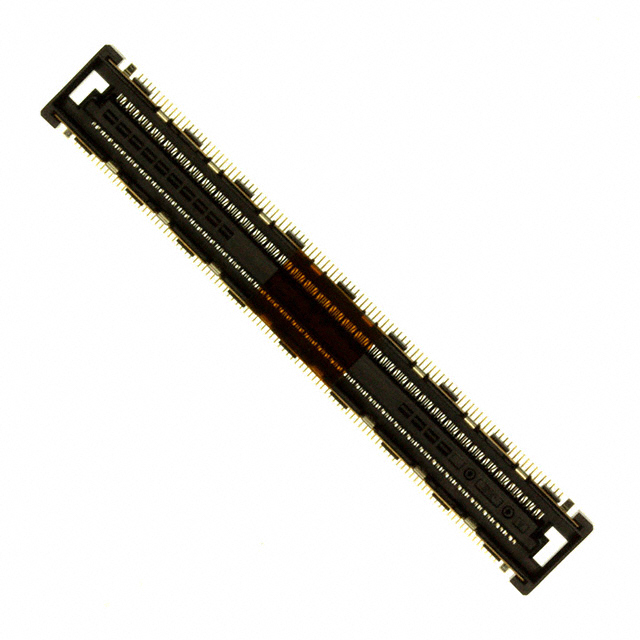

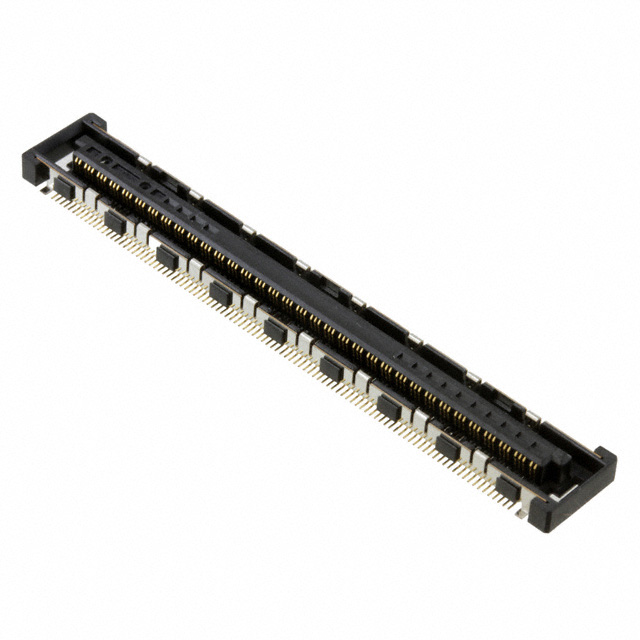

CONN RCPT 200POS SMD GOLD
| Part | Connector Type | Height Above Board [z] | Height Above Board [z] | Mated Stacking Heights | Mounting Type | Number of Rows [custom] | Number of Positions | Pitch | Pitch | Features | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Receptacle Center Strip Contacts | 0.098 in | 2.5 mm | 4 mm 5 mm | Surface Mount | 2 | 200 | 0.02 " | 0.5 mm | Board Guide Solder Retention | Gold | 30 Áin | 0.76 Ám |
 JAE Electronics | Receptacle Center Strip Contacts | 0.126 in | 3.2 mm | 4 mm 5 mm | Surface Mount | 2 | 200 | 0.02 " | 0.5 mm | Board Guide Solder Retention | Gold | 30 Áin | 0.76 Ám |
 JAE Electronics | Receptacle Center Strip Contacts | 0.126 in | 3.2 mm | 4 mm 5 mm | Surface Mount | 2 | 200 | 0.02 " | 0.5 mm | Board Guide Solder Retention | Gold | 30 Áin | 0.76 Ám |
