1634201 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

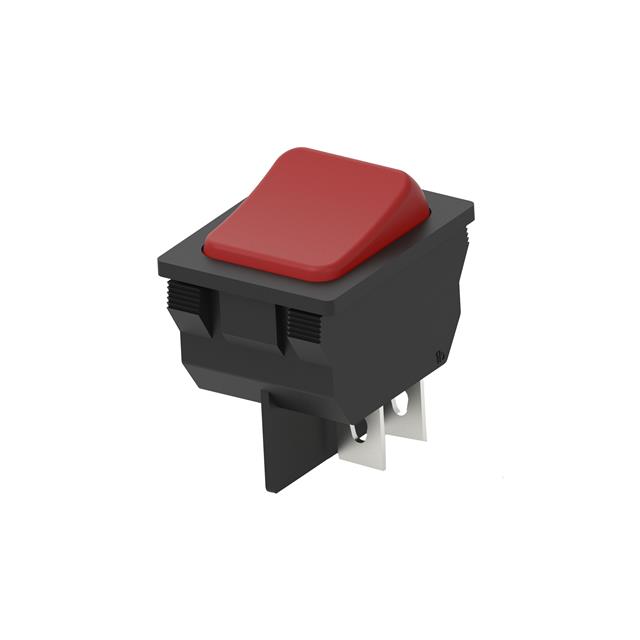

SWITCH ROCKER ON OFF DPST QUICK CONNECT CURVED ROCKER 16A 250VAC >100000CYCLES TRAY
| Part | Termination Style | Current Rating (Amps) | Circuit | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Marking | Color - Actuator/Cap | Approval Agency | Actuator Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Quick Connect - 0.250" (6.3mm) | 16 A | DPST | 125 V | 22.2 mm | 30.2 mm | No Marking | Red | cULus | Concave (Curved) | Panel Mount Snap-In | 85 °C | -20 ░C | On-Off |
 TE Connectivity AMP Connectors | Quick Connect - 0.250" (6.3mm) | 16 A | DPDT | 125 V | 22.2 mm | 30.2 mm | - = - = | Black | cULus | Concave (Curved) | Panel Mount Snap-In | 85 °C | -20 ░C | On-On |
