CHV Series

Catalog

THICK FILM RESISTORS - SMD 4.7M .5W 5% TCR200 RES SMD

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Temperature Coefficient	Features	Composition	Package / Case	Tolerance	Supplier Device Package	Power (Watts)	Power (Watts)	Number of Terminations [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Bourns Inc. CHV2010-JW-475ELF	0.7 mm	0.028 "	5 mm	0.098 in	0.197 in	2.5 mm	4.7 MOhms	200 ppm/°C	High Voltage	Thick Film	2010 (5025 Metric)	5 %	2010	0.5 W	0.5 W	2	155 C	-55 C
Bourns Inc. CHV0805-FX-1005ELF			2 mm	0.049 "	0.079 in	1.25 mm	10 MOhms	100 ppm/°C	High Voltage	Thick Film	0805	1 %		0.125 W	0.125 W	2	155 C	-55 C	0805	0.6 mm	0.024 in

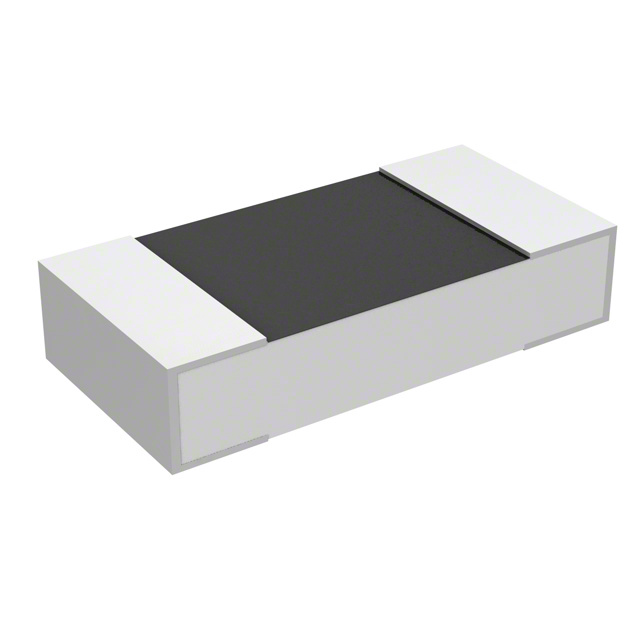

Bourns Inc. CHV1206-FX-1004ELF			3.1 mm	0.063 "	0.122 "	1.6 mm	1 MOhms	100 ppm/°C	High Voltage	Thick Film	1206 (3216 Metric)	1 %		0.25 W	0.25 W	2	155 C	-55 C	1206	0.65 mm	0.026 in
Bourns Inc. CHV0805-JW-334ELF			2 mm	0.049 "	0.079 in	1.25 mm	330 kOhms	200 ppm/°C	High Voltage	Thick Film	0805	5 %		0.125 W	0.125 W	2	155 C	-55 C	0805	0.6 mm	0.024 in
Bourns Inc. CHV1206-FX-7874ELF			3.1 mm	0.063 "	0.122 "	1.6 mm	7.87 MOhms	100 ppm/°C	High Voltage	Thick Film	1206 (3216 Metric)	1 %		0.25 W	0.25 W	2	155 C	-55 C	1206	0.65 mm	0.026 in
Bourns Inc. CHV1206-JW-154ELF			3.1 mm	0.063 "	0.122 "	1.6 mm	150000 Ohms	200 ppm/°C	High Voltage	Thick Film	1206 (3216 Metric)	5 %		0.25 W	0.25 W	2	155 C	-55 C	1206	0.65 mm	0.026 in
Bourns Inc. CHV0805-FX-3603ELF			2 mm	0.049 "	0.079 in	1.25 mm	360 kOhms	100 ppm/°C	High Voltage	Thick Film	0805	1 %		0.125 W	0.125 W	2	155 C	-55 C	0805	0.6 mm	0.024 in
Bourns Inc. CHV0805-JW-106ELF			2 mm	0.049 "	0.079 in	1.25 mm	10 MOhms	200 ppm/°C	High Voltage	Thick Film	0805	5 %		0.125 W	0.125 W	2	155 C	-55 C	0805	0.6 mm	0.024 in
Bourns Inc. CHV1206-FX-3304ELF			3.1 mm	0.063 "	0.122 "	1.6 mm	3.3 MOhms	100 ppm/°C	High Voltage	Thick Film	1206 (3216 Metric)	1 %		0.25 W	0.25 W	2	155 C	-55 C	1206	0.65 mm	0.026 in
