86091326114 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

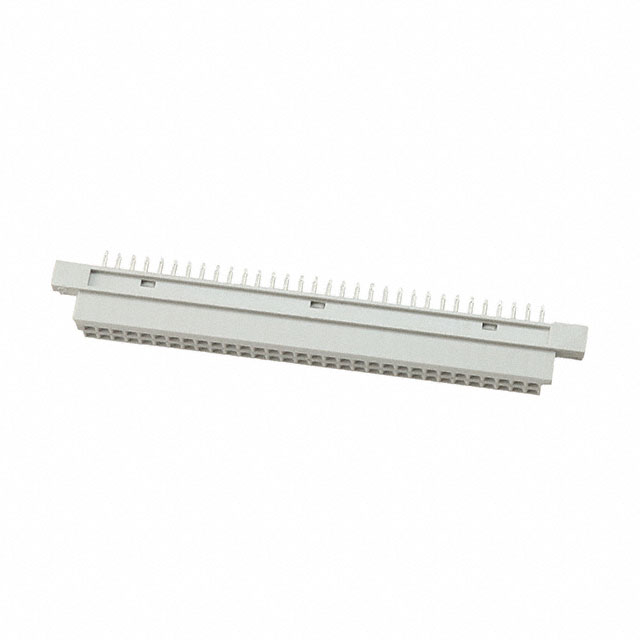

CONN DIN RCPT 64POS PCB RA GOLD
| Part | Connector Type | Style | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Material Flammability Rating | Number of Positions Loaded | Material - Insulation | Number of Positions | Pitch [x] | Pitch [x] | Mounting Type | Current Rating (Amps) | Number of Rows | Contact Finish | Level, Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Receptacle Female Sockets | B | -55 °C | 125 °C | Solder | UL94 V-0 | 32 | Polyester Thermoplastic | 64 | 2.54 mm | 0.1 in | Through Hole Right Angle | 1.5 A | 2 | Gold | 3 |
 Amphenol ICC (FCI) | Receptacle Female Sockets | B | -55 °C | 125 °C | Solder | UL94 V-0 | 32 | Polyester Thermoplastic | 64 | 2.54 mm | 0.1 in | Through Hole | 1.5 A | 2 | Gold | 1 |
Amphenol ICC (FCI) | Receptacle Female Sockets | B | -55 °C | 125 °C | Solder | UL94 V-0 | 32 | Polyester Thermoplastic Glass Filled | 64 | 2.54 mm | 0.1 in | Through Hole | 1.5 A | 2 | Gold | |
Amphenol ICC (FCI) | Receptacle Female Sockets | B | -55 °C | 125 °C | Solder | UL94 V-0 | 32 | Polyester Thermoplastic | 64 | 2.54 mm | 0.1 in | Through Hole | 1.5 A | 2 | Gold | 1 |
