039732 Series
Manufacturer: Molex
Beta
⌘K
TERM BLOCK HDR 2POS 45DEG 5MM
| Part | Insulation Height | Insulation Height | Current - UL | Pitch [x] | Pitch [x] | Termination Style | Contact Mating Finish | Header Orientation | Mounting Type | Contact Tail Length | Contact Tail Length | Contact Material | Number of Levels | Voltage - UL | Type | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Color | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

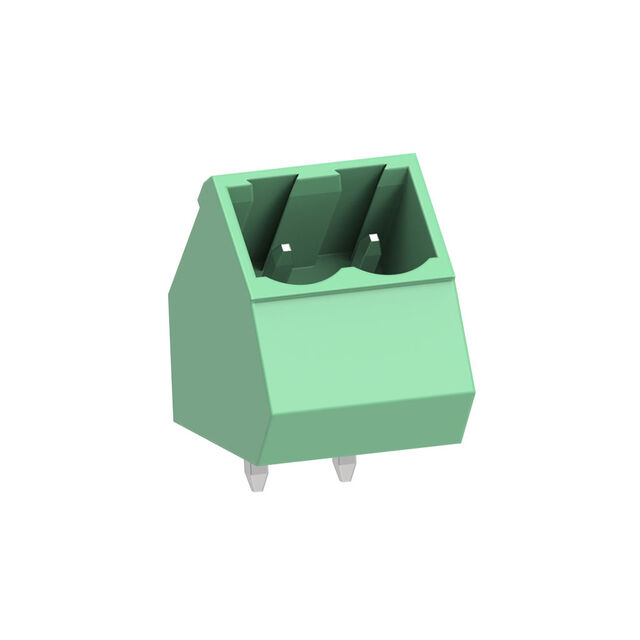

 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 2 | -40 °C | 105 ░C | 2 | Green | UL94 V-0 |
 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 10 | -40 °C | 105 ░C | 10 | Green | UL94 V-0 |

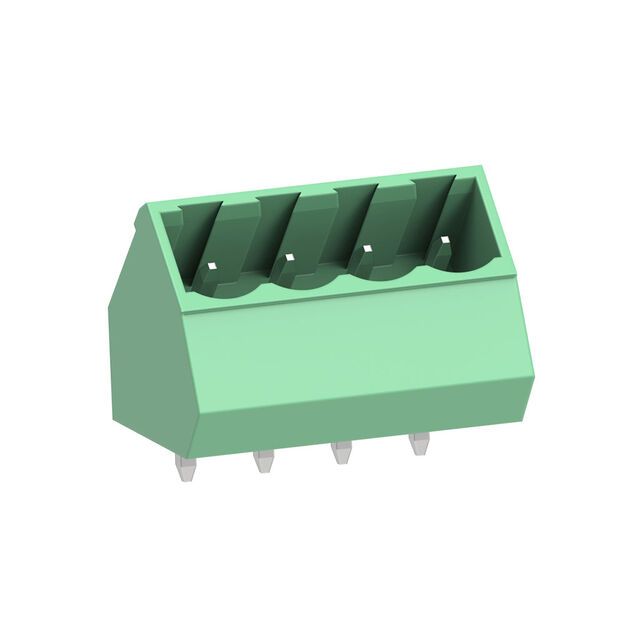

 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 4 | -40 °C | 105 ░C | 4 | Green | UL94 V-0 |

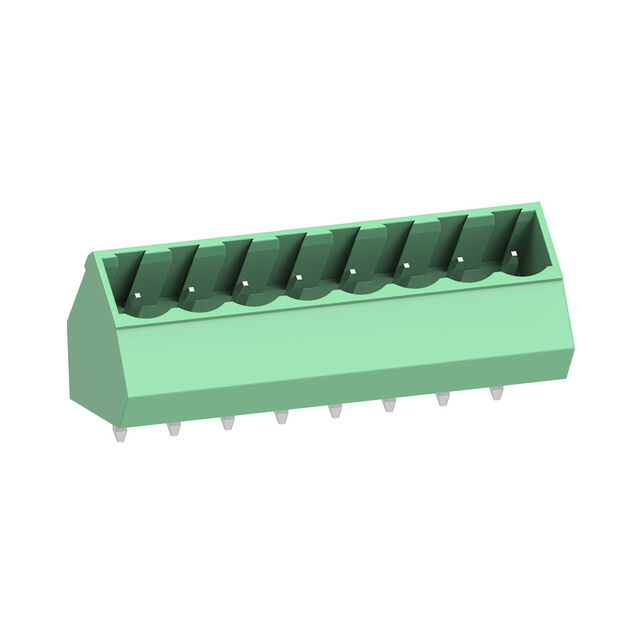

 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 8 | -40 °C | 105 ░C | 8 | Green | UL94 V-0 |

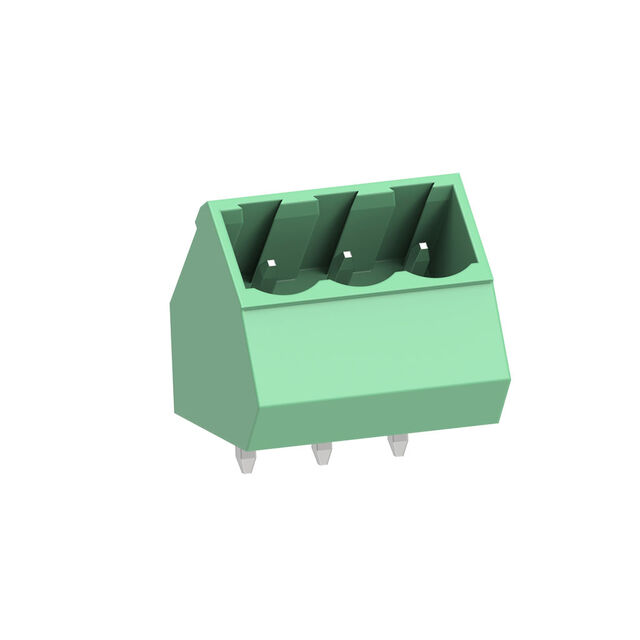

 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 3 | -40 °C | 105 ░C | Green | UL94 V-0 | |

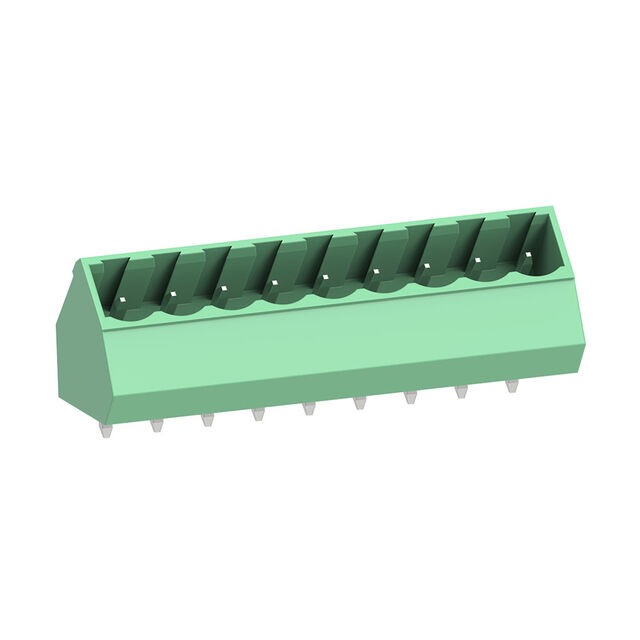

 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 9 | -40 °C | 105 ░C | 9 | Green | UL94 V-0 |

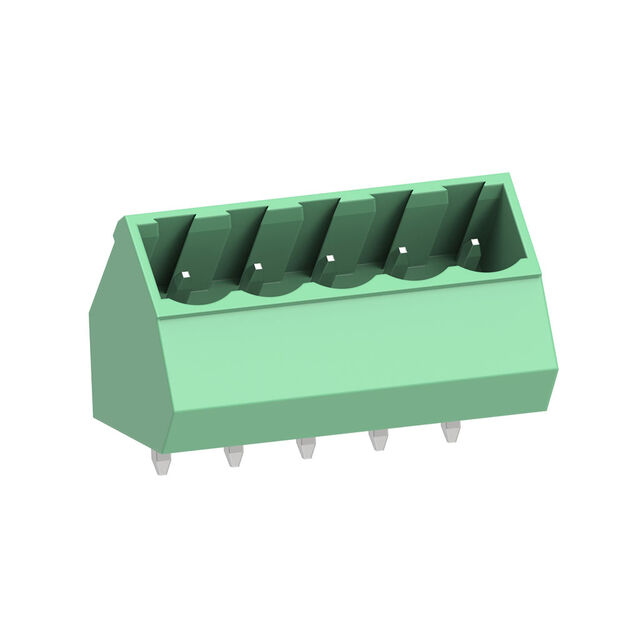

 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 5 | -40 °C | 105 ░C | Green | UL94 V-0 | |

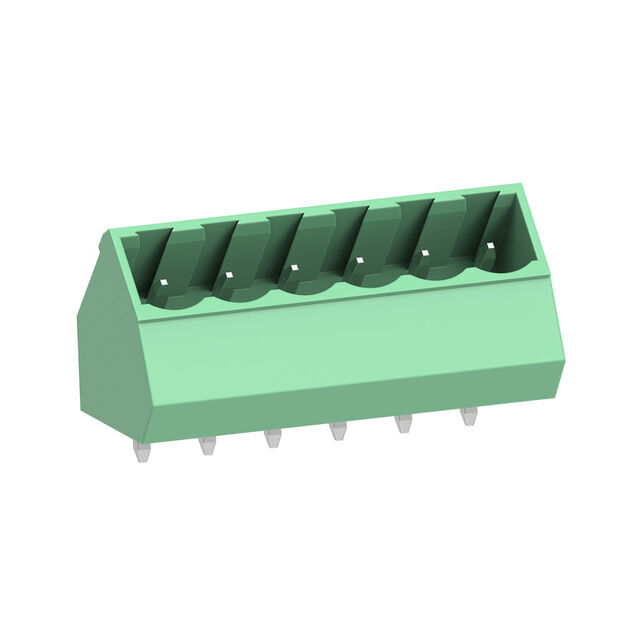

 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 6 | -40 °C | 105 ░C | 6 | Green | UL94 V-0 |

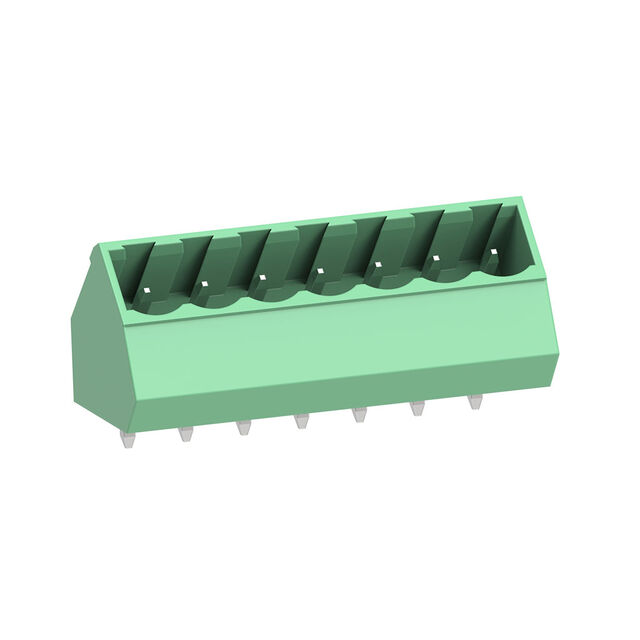

 Molex | 14.48 mm | 0.57 in | 10 A | 5 mm | 0.197 in | Solder | Tin | 45 ° | Through Hole | 3.56 mm | 0.14 in | Brass | 1 | 300 V | Header Male Pins Shrouded (4 Side) | 7 | -40 °C | 105 ░C | 7 | Green | UL94 V-0 |
