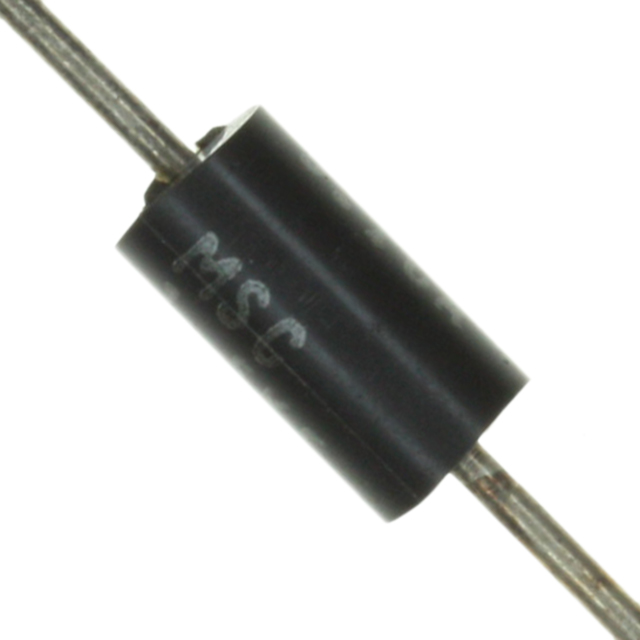

1.5KE Series

Catalog

TVS DIODE 77.8VWM 125VC CASE-1

Part	Power - Peak Pulse	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Applications	Supplier Device Package	Package / Case	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Mounting Type	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Bidirectional Channels [custom]
Microsemi Corporation 1.5KE91AE3/TR13	1.5 kW	1500 W	77.8 V	1	General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	125 V	86.5 V	Through Hole	12 A	150 °C	-65 °C
Microsemi Corporation 1.5KE30CAE3/TR13	1.5 kW	1500 W	25.6 V		General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	41.4 V	28.5 V	Through Hole	36 A	150 °C	-65 °C	1
Microsemi Corporation 1.5KE39AE3/TR13	1.5 kW	1500 W	33.3 V	1	General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	53.9 V	37.1 V	Through Hole	28 A	150 °C	-65 °C
Microsemi Corporation 1.5KE10CAE3/TR13	1.5 kW	1500 W	8.55 V		General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	14.5 V	9.5 V	Through Hole	103 A	150 °C	-65 °C	1
Microsemi Corporation 1.5KE51CAE3/TR13	1.5 kW	1500 W	43.6 V		General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	70.1 V	48.5 V	Through Hole	21.4 A	150 °C	-65 °C	1
Microsemi Corporation 1.5KE36AE3/TR13	1.5 kW	1500 W	30.8 V	1	General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	49.9 V	34.2 V	Through Hole	30 A	150 °C 150 °C	-65 °C -55 C
Microsemi Corporation 1.5KE200CAE3/TR13	1.5 kW	1500 W	171 V		General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	274 V	190 V	Through Hole	5.5 A	150 °C	-65 °C	1
Microsemi Corporation 1.5KE220AE3/TR13	1.5 kW	1500 W		1	General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	328 V	209 V	Through Hole	4.6 A	150 °C	-65 °C
Microsemi Corporation 1.5KE18AE3/TR13	1.5 kW	1500 W	15.3 V	1	General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	25.2 V	17.1 V	Through Hole	59.5 A	150 °C 150 °C	-65 °C -55 C
Microsemi Corporation 1.5KE20AE3/TR13	1.5 kW	1500 W	17.1 V	1	General Purpose	CASE-1	Axial DO-201AA DO-27	Zener	27.7 V	19 V	Through Hole	54 A	150 °C	-65 °C
