19461100 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 10A

Part	Style	Ingress Protection	Features	Housing Material	Connector Type	Housing Color	Lock Location	Size	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]

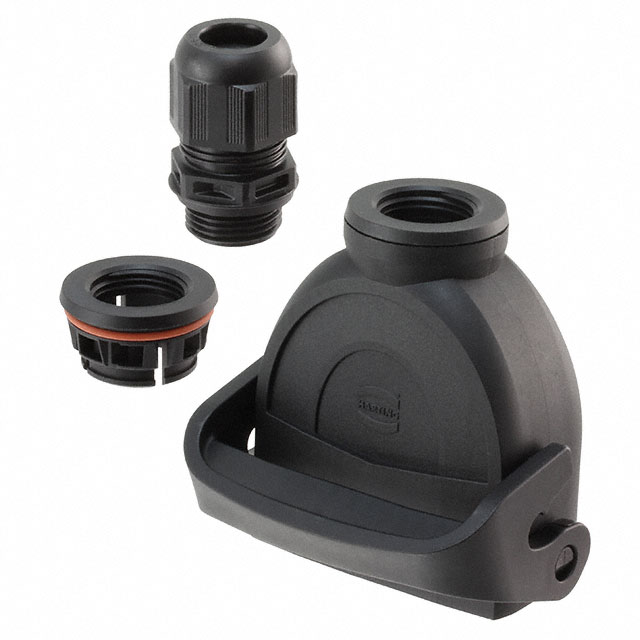

HARTING 19461100435	Bottom Entry Top or Bottom Entry	IP65 - Dust Tight Water Resistant	Cable to Cable	Glass Filled Nylon Polyamide (PA)	Hood - Coupling	Black	Locking Clip (1) on Hood Top	10 A	M20	125 °C	-40 C

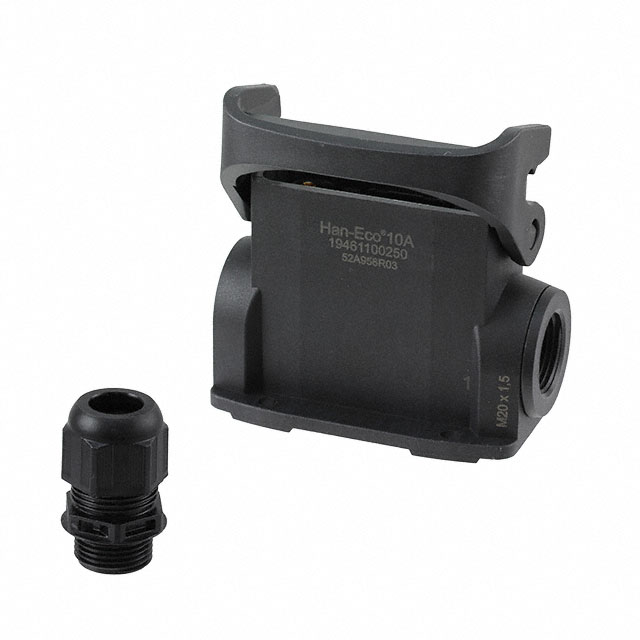

HARTING 19461100250	Side Entry	IP65 - Dust Tight Water Resistant		Glass Filled Nylon Polyamide (PA)	Base - Box Mount	Black	Locking Clip (1) on Base Bottom	10 A	M20	125 °C	-40 C	50 mm	1.969 in	61.15 mm	2.407 in	80.6 mm	3.173 in
HARTING 19461100293	Side Entry	IP65 - Dust Tight Water Resistant		Glass Filled Nylon Polyamide (PA)	Base - Box Mount	Black	Locking Clip (1) on Base Bottom	10 A	M25	125 °C	-40 C

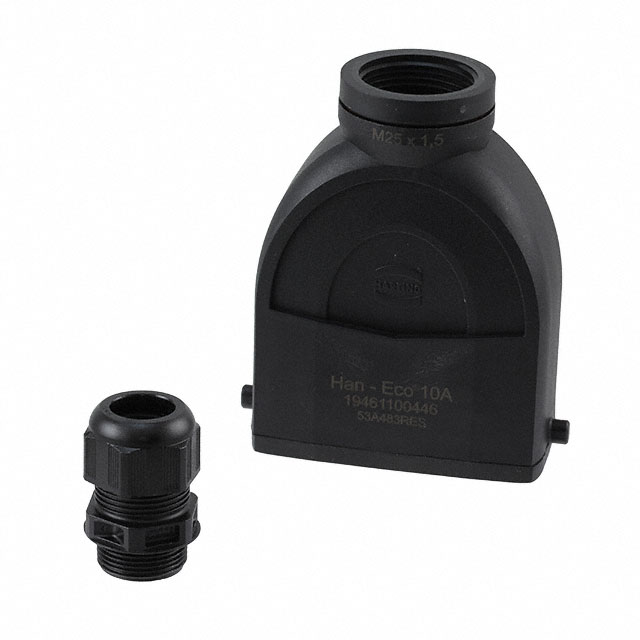

HARTING 19461100446	Top Entry	IP65 - Dust Tight Water Resistant		Glass Filled Nylon Polyamide (PA)	Hood	Black	Locking Clip (1) on Base Bottom	10 A	M25	125 °C	-40 C
HARTING 19461100253	Side Entry	IP65 - Dust Tight Water Resistant	Cover	Glass Filled Nylon Polyamide (PA)	Base - Box Mount	Black	Locking Clip (1) on Base Bottom	10 A	M25	125 °C	-40 C	50 mm	1.969 in	61.15 mm	2.407 in	80.6 mm	3.173 in

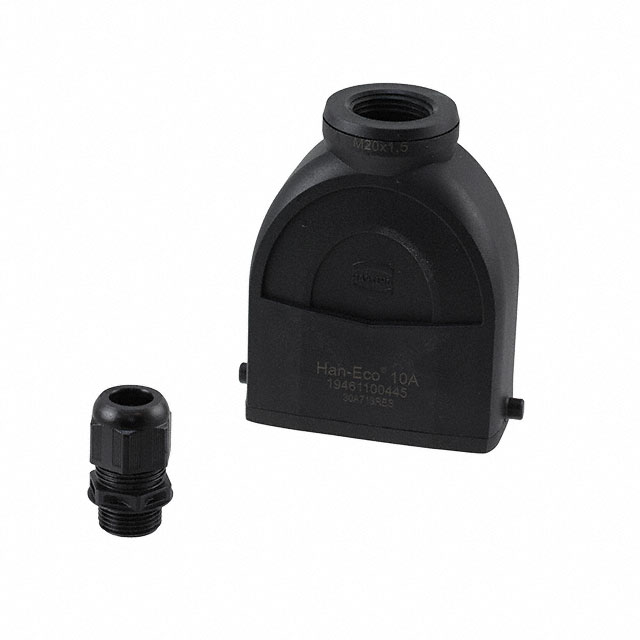

HARTING 19461100445	Top Entry	IP65 - Dust Tight Water Resistant		Glass Filled Nylon Polyamide (PA)	Hood	Black	Locking Clip (1) on Base Bottom	10 A	M20	125 °C	-40 C

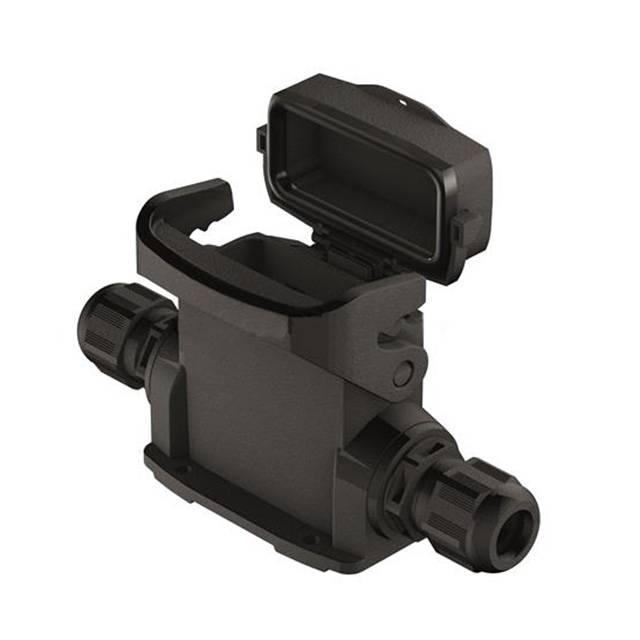

HARTING 19461100292	Side Entry	IP65 - Dust Tight Water Resistant		Glass Filled Nylon Polyamide (PA)	Base - Box Mount	Black	Locking Clip (1) on Base Bottom	10 A	M20	125 °C	-40 C

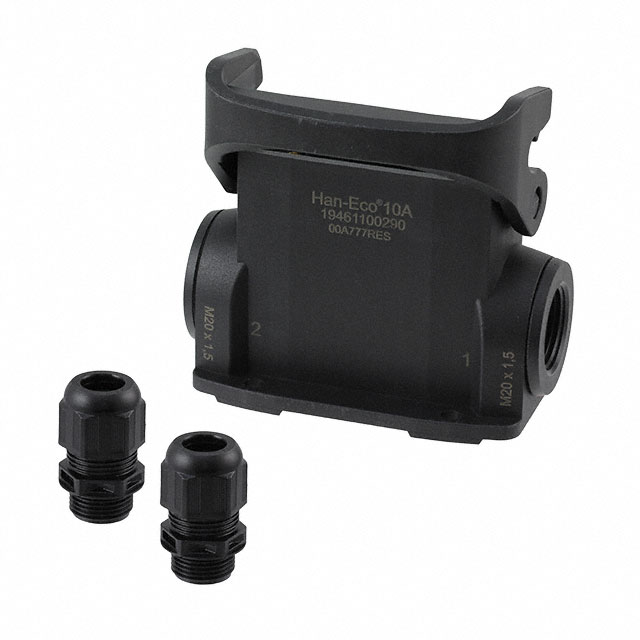

HARTING 19461100290	Side Entry	IP65 - Dust Tight Water Resistant	Feed Through	Glass Filled Nylon Polyamide (PA)	Base - Box Mount	Black	Locking Clip (1) on Base Bottom	10 A	M20	125 °C	-40 C
