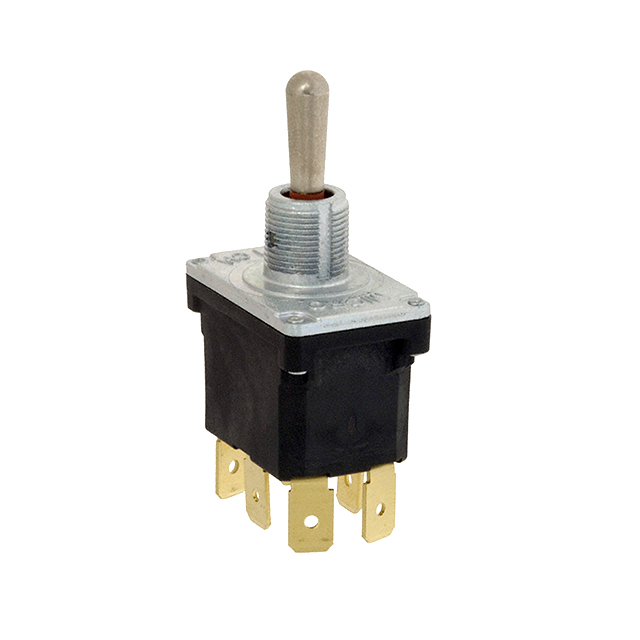

2NT9 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE (ON) OFF ON DPDT ROUND LEVER QUICK CONN 18A 277VAC 250VDC PANEL MOUNT WITH THREADS

Part	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Type	Circuit	Termination Style	Illumination	Switch Function	Current Rating (Amps)	Bushing Thread	Mounting Type	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions 32NT91-5	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPDT	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-Off-Mom	10 A	15/32-32	Panel Mount	125 V
Honeywell Sensing and Productivity Solutions 2NT91-5	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPDT	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-Off-Mom	10 A	15/32-32	Panel Mount	125 V
Honeywell Sensing and Productivity Solutions 32NT91-50	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPDT	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-On-Mom	10 A	15/32-32	Panel Mount	125 V

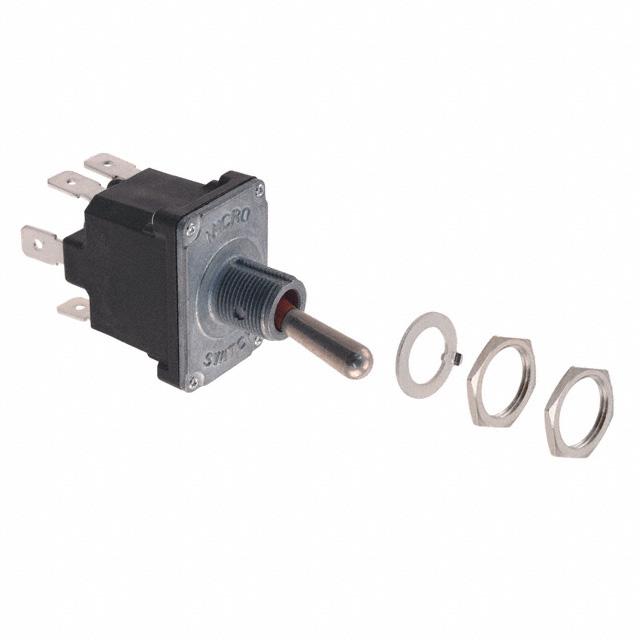

Honeywell Sensing and Productivity Solutions 2NT91-3	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPDT	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-On	15 A	15/32-32	Panel Mount	125 V

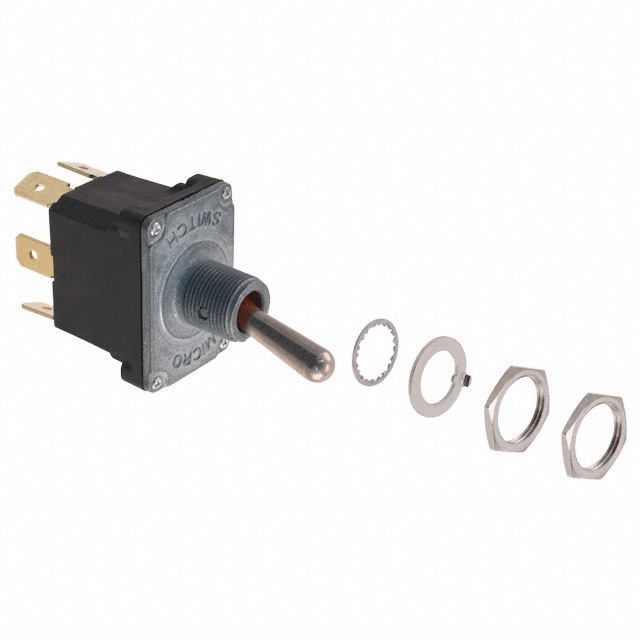

Honeywell Sensing and Productivity Solutions 32NT91-3	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPDT	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-On	15 A	15/32-32	Panel Mount	125 V
Honeywell Sensing and Productivity Solutions 32NT911-7	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPDT	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	Mom-Off-Mom	10 A	15/32-32	Panel Mount	125 V
Honeywell Sensing and Productivity Solutions 32NT91-61	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPST-NO	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	Off-Mom	10 A	15/32-32	Panel Mount	125 V
Honeywell Sensing and Productivity Solutions 32NT91-21	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPST	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-Off	15 A	15/32-32	Panel Mount	125 V
Honeywell Sensing and Productivity Solutions 32NT91-12	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPDT	Quick Connect - 0.250" (6.3mm)	Non-Illuminated	On-On-On	15 A	15/32-32	Panel Mount	125 V
Honeywell Sensing and Productivity Solutions 32NT92-3	17.02 mm	12.4 mm	IP67/IP68	71 °C	-40 C	Sealed	Standard Round	DPST	Solder Lug	Non-Illuminated	On-Off	15 A	15/32-32	Panel Mount	125 V
