UG96 Series

Manufacturer: Quectel

Catalog

RF TXRX MODULE CELL SMD

Part	Antenna Type	RF Family/Standard	Frequency	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Protocol	Sensitivity	Data Rate	Utilized IC / Part	Contents	Type
Quectel UG96LA-128-STD	Antenna Not Included	Cellular	1.8 GHz 1.9 GHz 2.1 GHz 800 MHz 850 MHz 900 MHz	Module	Surface Mount	85 °C	-40 C	33 dBm	4.3 V	3.3 V	I2C PCM UART USB	EDGE GPRS GSM HSPA+ UMTS	-110 dBm	7.2 Mbps

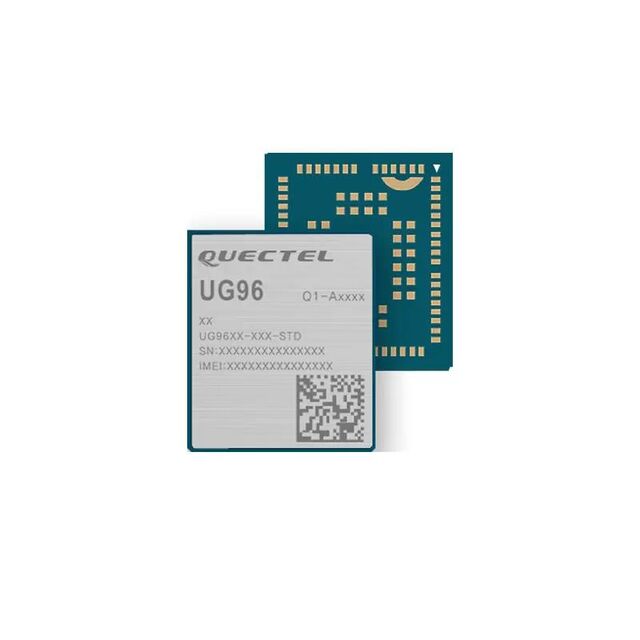

Quectel UG96LA-128-ING	Antenna Not Included	Cellular	1.9 GHz 2.1 GHz 800 MHz 850 MHz 900 MHz	Module	Surface Mount	85 °C	-40 C	33 dBm	4.3 V	3.3 V	I2C PCM UART USB	EDGE GPRS GSM HSDPA HSPA HSUPA UMTS	-110 dBm	7.2 Mbps

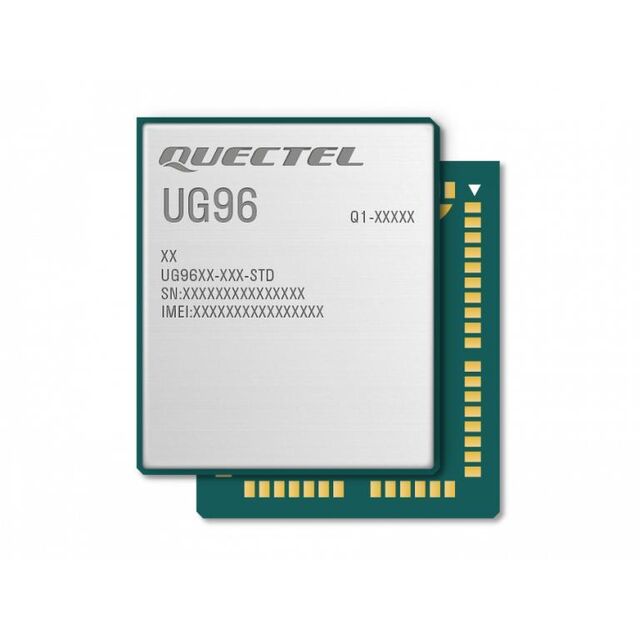

Quectel UG96LATEA-128-STD	Antenna Not Included	Cellular	1.8 GHz 1.9 GHz 2.1 GHz 800 MHz 850 MHz 900 MHz	Module	Surface Mount	85 °C	-40 C	33 dBm	4.3 V	3.3 V	I2C PCM UART USB	EDGE GPRS GSM HSPA+ UMTS	-110 dBm	7.2 Mbps	UG96	Board(s)	Cellular
