1023A Series
Manufacturer: Belden Inc.
Beta
⌘K

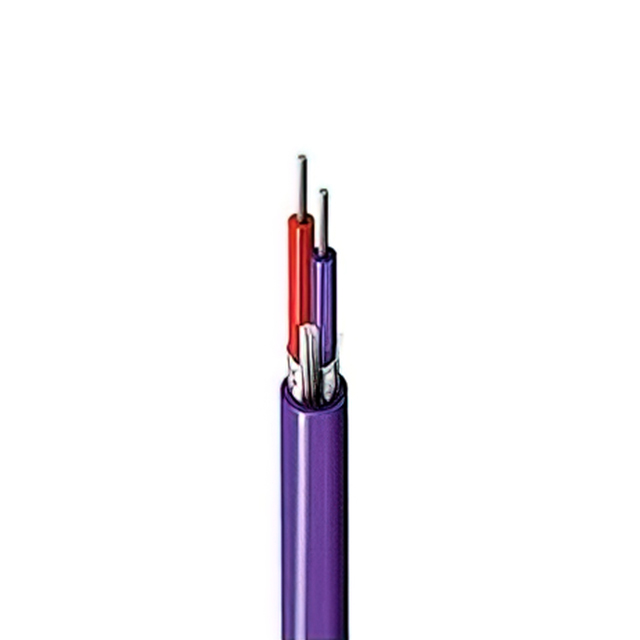

CABLE 2CON 16AWG BLUE SHLD
| Part | Shield Material | Shield Coverage | Length | Length | Conductor Strand | Cable Type | Features | Shield Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Conductor Insulation | Number of Conductors | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 304.8 m | 1000 ft | Solid | Multi-Conductor | Drain Wire | Foil | Blue | 0.264 in | 6.71 mm | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Constantan Copper Bare | Poly-Vinyl Chloride (PVC) | 2 | Thermocouple | 0.94 mm | 0.037 in | 16 AWG | 300 VDC |
 Belden Inc. | Aluminum | 100 % | 3048 m | 10000 ft | Solid | Multi-Conductor | Drain Wire | Foil | Blue | 0.264 in | 6.71 mm | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Constantan Copper Bare | Poly-Vinyl Chloride (PVC) | 2 | Thermocouple | 0.94 mm | 0.037 in | 16 AWG | 300 VDC |
