M13194 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

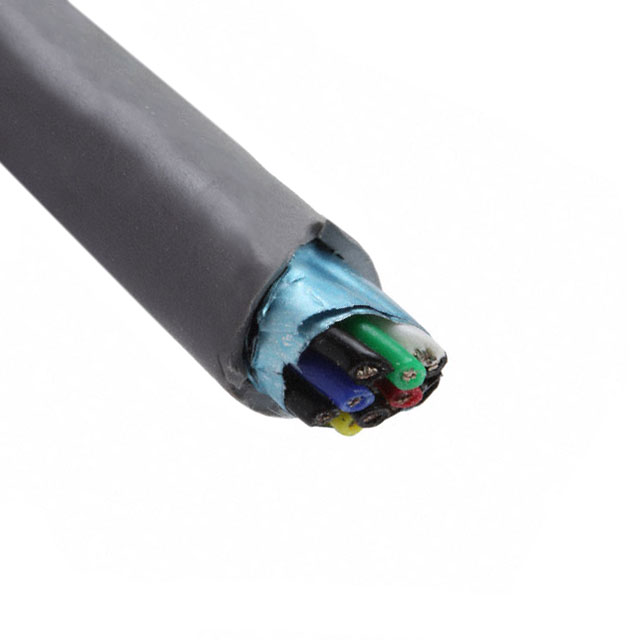

MULTI-PAIR 10COND 24AWG 1000'
| Part | Shield Coverage | Shield Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Voltage | Conductor Insulation | Number of Conductors | Ratings | Conductor Material | Wire Gauge | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Multi-Pair | 0.813 mm | 0.032 in | Foil | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 304.8 m | 1000 ft | 300 VDC | Poly-Vinyl Chloride (PVC) | 10 | UL Style 2464 | Copper Tinned | 24 AWG | Slate | 6.78 mm | 0.267 in | 7 | 32 AWG |
ALPHA WIRE | 100 % | Aluminum | Multi-Pair | 0.813 mm | 0.032 in | Foil | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 152.4 m | 500 ft | 300 VDC | Poly-Vinyl Chloride (PVC) | 10 | UL Style 2464 | Copper Tinned | 24 AWG | Slate | 6.78 mm | 0.267 in | 7 | 32 AWG |
