ALMD-LG36 Series

Catalog

LED RED DIFFUSED 4SMD

Part	Mounting Type	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle [custom]	Viewing Angle [custom]	Lens Style	Color	Millicandela Rating	Package / Case	Lens Transparency	Supplier Device Package	Wavelength - Dominant	Lens Color	Height (Max) [Max] [z]	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Configuration	Viewing Angle
Broadcom Limited ALMD-LG36-YZ002	Surface Mount	20 mA	2.1 V	40 °	100 °	Rectangle with Domed Top	Red	2445 mcd	4-SMD Gull Wing	Diffused	4-SMD	626 nm	Red	7 mm	634 nm	4.2 mm	4.2 mm

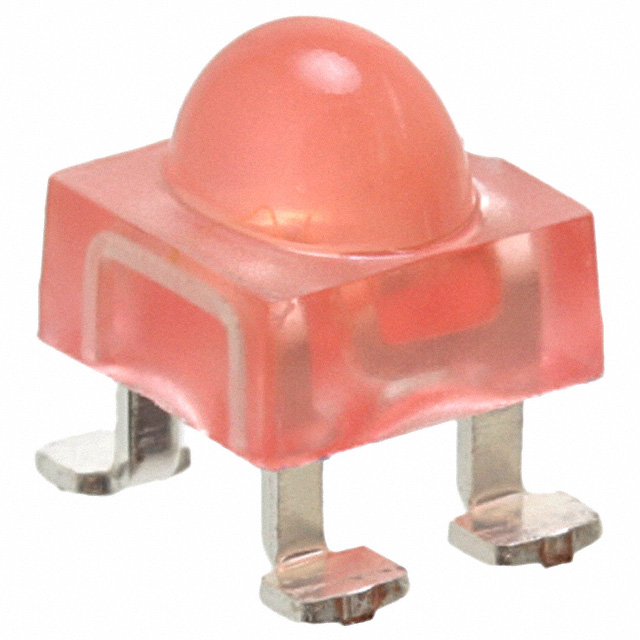

Broadcom Limited ALMD-LG36-WZ002	Surface Mount	20 mA	2.1 V			Oval with Domed Top	Red	2140 mcd	4-SMD Gull Wing	Diffused	SMD	626 nm	Red	5.7 mm	634 nm	4.2 mm	4.2 mm	Standard	40 ° 100 °
Broadcom Limited ALMD-LG36-XY002	Surface Mount	20 mA	2.1 V	40 °	100 °	Rectangle with Domed Top	Red		4-SMD Gull Wing	Diffused	4-SMD	626 nm	Red	7 mm	634 nm	4.2 mm	4.2 mm
Broadcom Limited ALMD-LG37-XY002	Surface Mount	20 mA	2.1 V	40 °	100 °	Rectangle with Domed Top	Red		4-SMD Gull Wing	Diffused	4-SMD	626 nm	Red	5.7 mm	634 nm	4.2 mm	4.2 mm
