109R0648 Series

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Manufacturer: Sanyo Denki America Inc.

Catalog

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Catalog

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Part	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Material - Blade	RPM	Fan Type	Approval Agency	Bearing Type	Voltage - Rated	Width [y]	Air Flow	Air Flow	Termination	Power (Watts)	Noise	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Features
Sanyo Denki America Inc. 109R0648G402	40000 Hrs	53 VDC	43 VDC	Plastic	70 mA	Plastic	5600 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm	27.5 CFM	0.77 m³/min	2 Wire Leads	3.36 W	39 dB(A)	0.199 lb	90.26 g	60 mm	60 mm	87.3 Pa	0.351 in H2O	60 °C	60 °C	-4 °F	-20 ░C
Sanyo Denki America Inc. 109R0648J402	40000 Hrs	52.8 VDC	43.2 VDC	Plastic	120 mA	Plastic	7600 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm	37.1 CFM	1.04 mł/min	2 Wire Leads	5.76 W	44 dB(A)	0.199 lb	90.26 g	60 mm	60 mm	155 Pa	0.622 in H2O	60 °C	60 °C	-4 °F	-20 ░C
Sanyo Denki America Inc. 109R0648H4D011		53 VDC	40 V	Plastic	40 mA	Plastic	3800 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm	18.7 CFM	0.524 mł/min	3 Wire Leads	1.92 W	28 dB	0.199 lb	90.26 g	60 mm	60 mm				70 °C		-20 ░C	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0648G4021	40000 Hrs	53 VDC	43 VDC	Plastic	70 mA	Plastic	5600 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm	27.5 CFM	0.77 m³/min	2 Wire Leads	3.36 W	39 dB(A)	0.199 lb	90.26 g	60 mm	60 mm	87.3 Pa	0.351 in H2O	60 °C	60 °C	-4 °F	-20 ░C

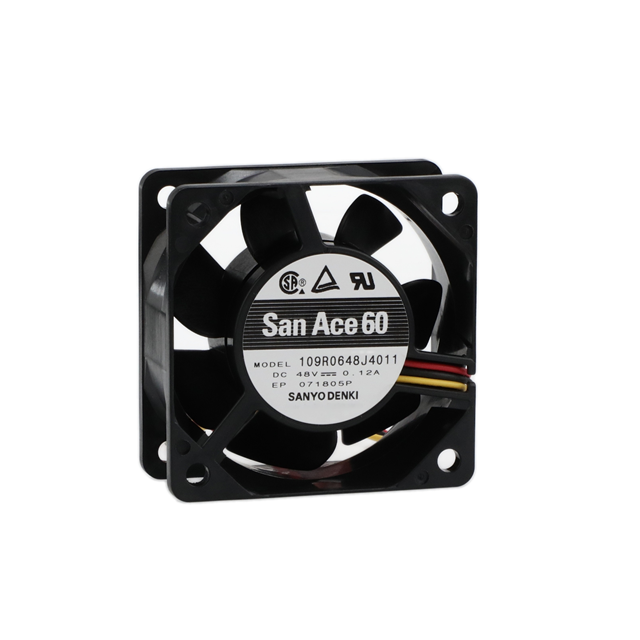

Sanyo Denki America Inc. 109R0648J4011	40000 Hrs	52.8 VDC	43.2 VDC	Plastic	120 mA	Plastic	7600 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm	37.1 CFM	1.04 mł/min	3 Wire Leads	5.76 W	44 dB(A)	0.199 lb	90.26 g	60 mm	60 mm	155 Pa	0.622 in H2O	60 °C	60 °C	-4 °F	-20 ░C	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0648J401	40000 Hrs	52.8 VDC	43.2 VDC	Plastic	120 mA	Plastic	7600 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm	37.1 CFM	1.04 mł/min	3 Wire Leads	5.76 W	44 dB(A)	0.199 lb	90.26 g	60 mm	60 mm	155 Pa	0.622 in H2O	60 °C	60 °C	-4 °F	-20 ░C	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0648H4011		53 VDC	40 V	Plastic	40 mA	Plastic	3800 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm	18.7 CFM	0.524 mł/min	3 Wire Leads	1.92 W	28 dB	0.199 lb	90.26 g	60 mm	60 mm				70 °C		-20 ░C	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0648G4D01	40000 Hrs	53 VDC	43 VDC	Plastic	70 mA	Plastic	5600 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm	27.5 CFM	0.77 m³/min	3 Wire Leads	3.36 W	39 dB(A)	0.199 lb	90.26 g	60 mm	60 mm	87.3 Pa	0.351 in H2O	60 °C	60 °C	-4 °F	-20 ░C	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0648S4021		53 VDC	40 V	Plastic	60 mA	Plastic	4600 RPM	Tubeaxial	CSA TUV UL	Ball	48 VDC	25 mm			2 Wire Leads	5.76 W	33 dB(A)	0.199 lb	90.26 g	60 mm	60 mm				60 °C		-10 °C
