837-022 Series
Manufacturer: EDAC Inc.
Beta
⌘K

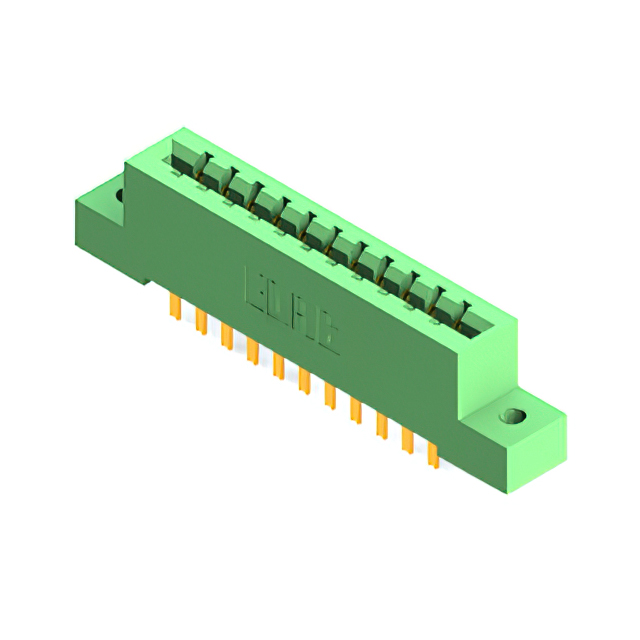

CONN EDGE SGL FMALE 22POS 0.156
| Part | Material - Insulation | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Contact Material | Color | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Finish | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Number of Positions/Bay/Row | Contact Type | Read Out | Flange Feature | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.156 " | 3.96 mm | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.116 " | 2.95 mm | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Wire Wrap | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | Floating Bobbin Flush Mount | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | M3 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.128 " | 3.25 mm | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | Flush Mount Top Opening Unthreaded | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Wire Wrap | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | 4-40 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | Gold | 22 | 125 °C | -40 C | Non Specified - Dual Edge | 11 | Cantilever | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.116 " | 2.95 mm | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | Floating Bobbin Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.128 " | 3.25 mm | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Wire Wrap | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.128 " | 3.25 mm | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | Flush Mount Side Opening Unthreaded | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Copper Alloy | Green | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | Gold | 22 | 125 °C | -40 C | Non Specified - Single Edge | 22 | Cantilever | Single | Flush Mount M3 Threaded Insert Top Opening |
