NB4N855S Series

Translator, 3.3 V, 1.5 Gb/s Dual AnyLevel™ to LVDS Receiver/Driver/Buffer

Catalog

Translator, 3.3 V, 1.5 Gb/s Dual AnyLevel™ to LVDS Receiver/Driver/Buffer

Part	Utilized IC / Part	Supplied Contents	Type	Function	Package / Case	Package / Case [x]	Package / Case [x]	Number of Bits	Logic Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package

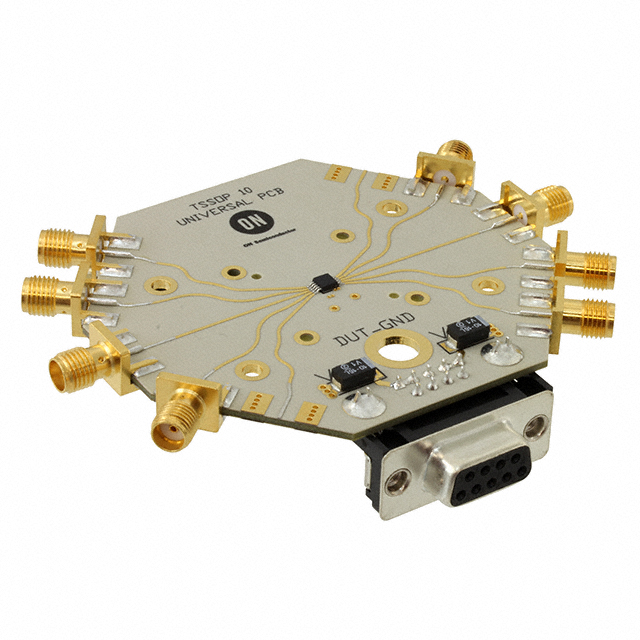

ON Semiconductor NB4N855SMEVB	NB4N855SM	Board(s)	Timing	Clock Buffer Driver Receiver Translator
ON Semiconductor NB4N855SMR4G					10-MSOP 10-TFSOP	3 mm	0.118 in	2	Buffer Driver Receiver Translator	Surface Mount	85 °C	-40 °C	10-Micro

Catalog

Translator, 3.3 V, 1.5 Gb/s Dual AnyLevel™ to LVDS Receiver/Driver/Buffer

Key Features

• Guaranteed Input Clock Frequency up to 1.0 GHz

• Guaranteed Input Data Rate up to 1.5 Gb/s

• 490 ps Maximum Propagation Delay

• 1.0 ps Maximum RMS Jitter

• 180 ps Maximum Rise/Fall Times

• Single Power Supply; VCC = 3.3 V ±10%

• Temperature Compensated TIA/EIA-644 Compliant LVDS Outputs

• GND + 50 mV to VCC - 50 mV VCMR Range

• Pb-Free Packages is Available

Description

NB4N855S is a clock or data Receiver/Driver/Buffer/Translator capable of translating AnyLevelTM input signal (LVPECL, CML, HSTL, LVDS, or LVTTL/LVCMOS) to LVDS. Depending on the distance, noise immunity of the system design, and transmission line media, this device will receive, drive or translate data or clock signals up to 1.5 Gb/s or 1.0 GHz, respectively. This device is pin-for-pin plug in compatible to the SY55855V in a 3.3 V applications.The NB4N855S has a wide input common mode range of GND + 50 mV to VCC - 50 mV. This feature is ideal for translating differential or single-ended data or clock signals to 350 mV typical LVDS output levels.The device is offered in a small 10 lead MSOP package. NB4N855S is targeted for data, wireless and telecom applications as well as high speed logic interface where jitter and package size are main requirements.
