AWH 16A Series

Catalog

CONN HEADER R/A 16POS 2.54MM

Part	Contact Finish - Mating	Insulation Material	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Number of Positions Loaded	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Contact Type	Contact Material	Fastening Type	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Color	Shrouding	Contact Finish Thickness - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating

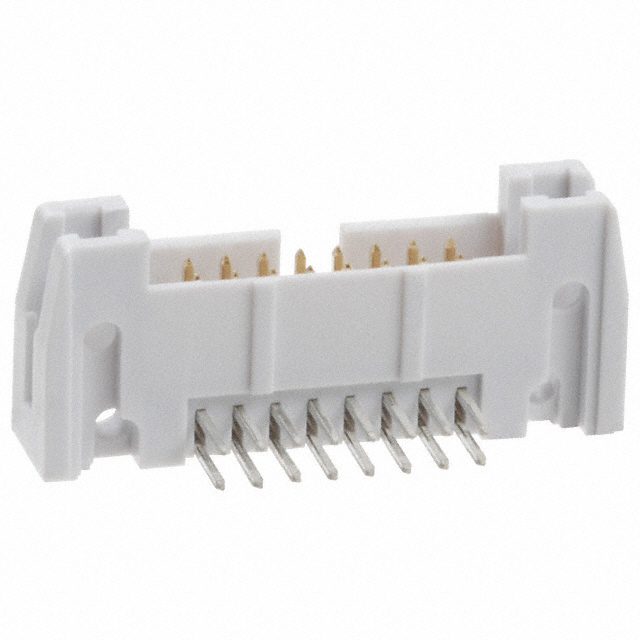

Assmann WSW Components AWH16A-0202-T-R	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Square	0.1 in	2.54 mm	2	All	Keying Slot	Solder	-40 C	105 ░C	16	Right Angle Through Hole	Male Pin	Brass	Push-Pull	Header	UL94 V-0	17 mm	0.669 in	Gray	Shrouded - 4 Wall	Flash	Board to Cable/Wire	3.81 mm	0.15 in	3 A	Tin	0.1 "	2.54 mm
