M20-782 Series

Catalog

CONNECTOR, RCPT, 3POS, 2.54MM, 1ROW

Part	Insulation Material	Contact Material	Contact Shape	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Connector Type	Material Flammability Rating	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Mating	Current Rating (Amps)	Termination	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Type	Fastening Type	Number of Positions Loaded	Mated Stacking Heights	Style	Number of Positions

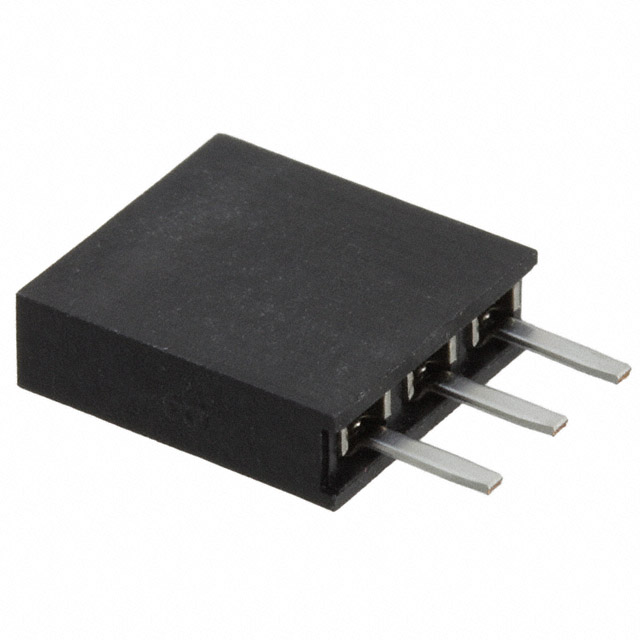

Harwin Inc. M20-7820342	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole	Flash	3 A	Solder	1000 VDC	0.1 "	2.54 mm	Gold	Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable

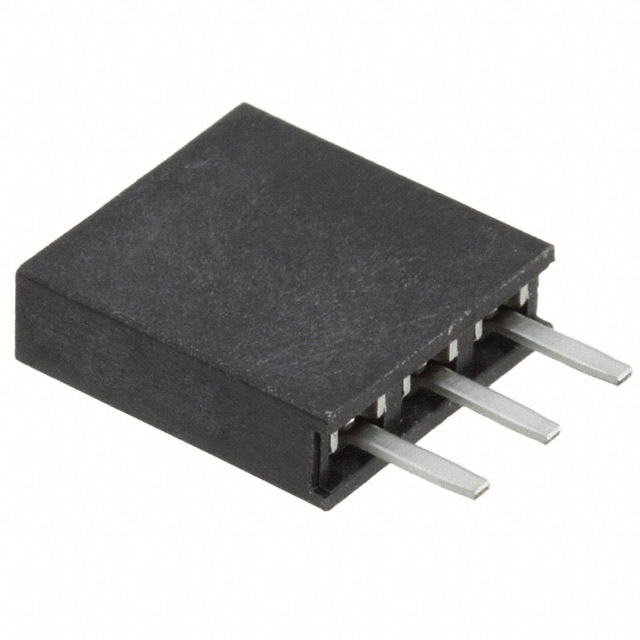

Harwin Inc. M20-7820346	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole		3 A	Solder	1000 VDC	0.1 "	2.54 mm		Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable
Harwin Inc. M20-7821642	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole	Flash	3 A	Solder	1000 VDC	0.1 "	2.54 mm	Gold	Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable	16

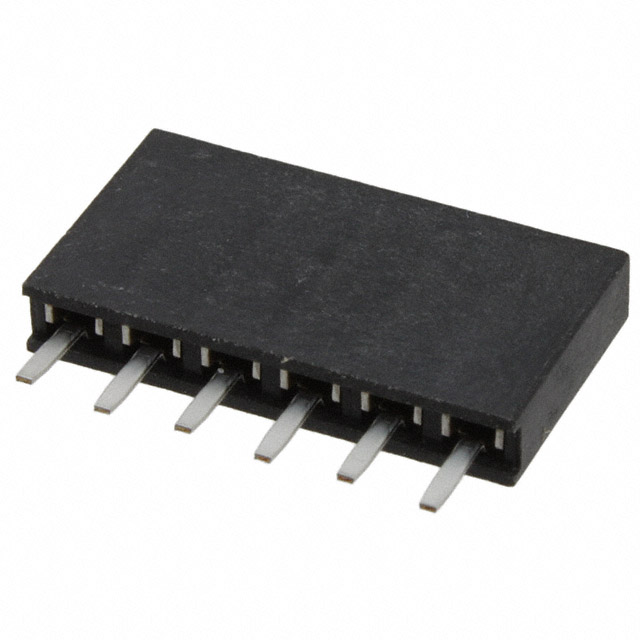

Harwin Inc. M20-7820642	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole	Flash	3 A	Solder	1000 VDC	0.1 "	2.54 mm	Gold	Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable	6
Harwin Inc. M20-7821242	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole	Flash	3 A	Solder	1000 VDC	0.1 "	2.54 mm	Gold	Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable	12

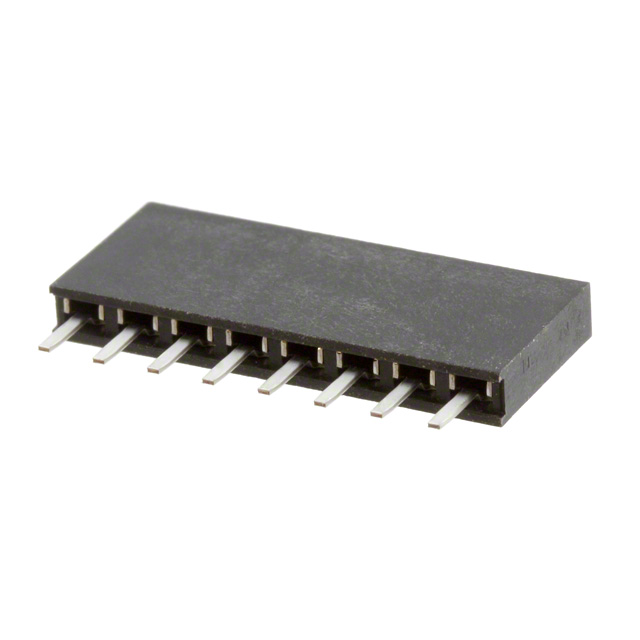

Harwin Inc. M20-7820842	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole	Flash	3 A	Solder	1000 VDC	0.1 "	2.54 mm	Gold	Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable	8
Harwin Inc. M20-7820646	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole		3 A	Solder	1000 VDC	0.1 "	2.54 mm		Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable	6

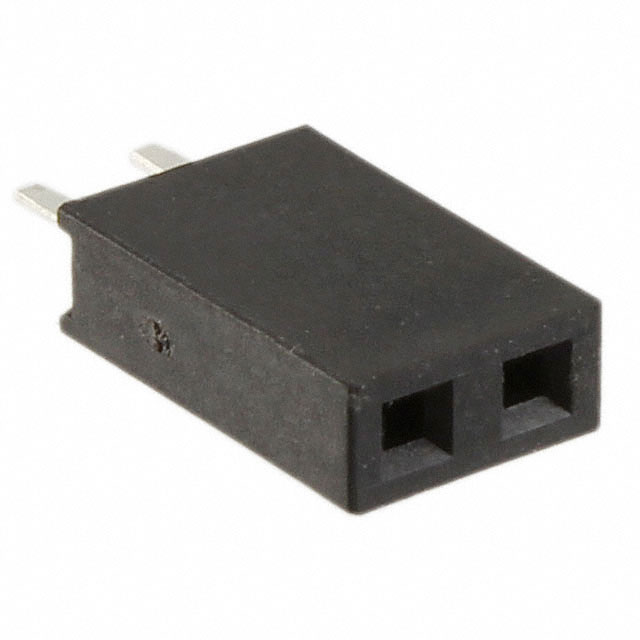

Harwin Inc. M20-7820242	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole	Flash	3 A	Solder	1000 VDC	0.1 "	2.54 mm	Gold	Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable	2

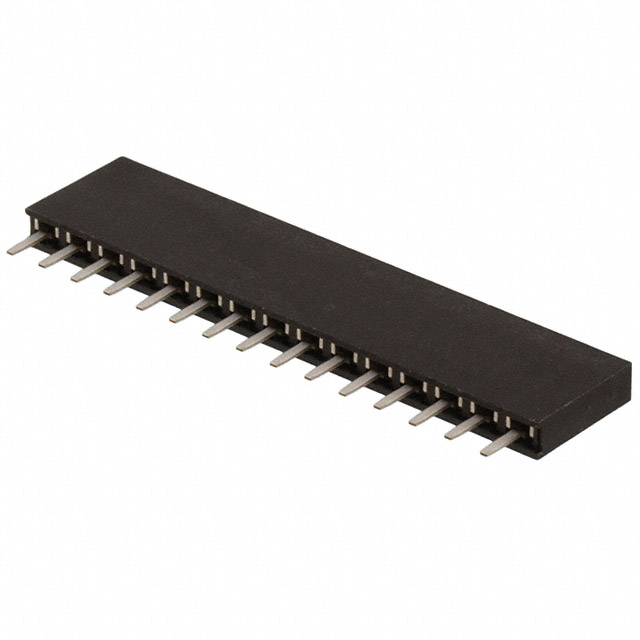

Harwin Inc. M20-7821546	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole		3 A	Solder	1000 VDC	0.1 "	2.54 mm		Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable	15
Harwin Inc. M20-7821042	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	-40 C	105 ░C	Tin	Black	0.118 in	3 mm	Receptacle	UL94 V-0	1	0.335 "	8.51 mm	Through Hole	Flash	3 A	Solder	1000 VDC	0.1 "	2.54 mm	Gold	Female Socket	Push-Pull	All	11.04 mm 12.63 mm	Board to Board Cable	10
